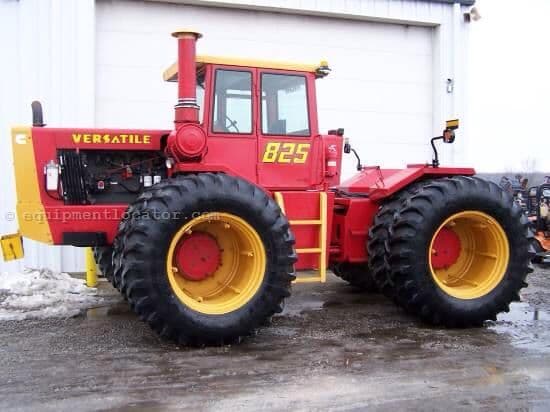

Versatile 825

Last Updated: June 2024

Overview

The Versatile 825 is a robust and powerful tractor, designed for a variety of heavy-duty agricultural tasks. It is powered by a Cummins NT-855-C250 turbocharged diesel engine that provides a solid 250 horsepower output. With its liquid-cooling system and displacement of 855 cubic inches, the tractor is built to handle operations requiring significant power and torque. The engine's rated RPM is 2100, with torque figures reaching 750 lb-ft at 1500 RPM. This model utilizes a gear transmission with 12 forward and 4 reverse gears, paired with a 355.6mm ceramic disc clutch. The Versatile 825 operates on large 24.5x32 inch Ag tires which are conducive to farming terrain and tasks. The tractor has a substantial wheelbase of 130 inches, providing stability, while its total length is 253 inches with an exhaust height of 130 inches, indicating a lofty stature for maximized visibility. As for operator comfort, the tractor comes equipped with a cab. A notable feature of the hydraulic system is its open center type, which provides responsive control for various agricultural implements. Although certain specifications such as the exact year of manufacture and the full dimensions are not provided, the substantial operating weight of 26,000 pounds underscores the tractor's heavy-duty capabilities.
Show more...

Key Specifications

Power Output: 250

Transmission: Gear

Operating Weight: 26000

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Cummins
Model
NT-855-C250
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
855
Bore (in)
5.5
Stroke (in)
6
Rated RPM
2100
Power Output (hp)
250

Transmission

Type
Gear
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
253
Width (in)
-
Height (in)
130
Operating Weight (lb)
26000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
49
Front Tire Diameter (in)
32
Front Tire Width (in)
24.5
Rear Tire Diameter (in)
32
Rear Tire Width (in)
24.5
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open Center
