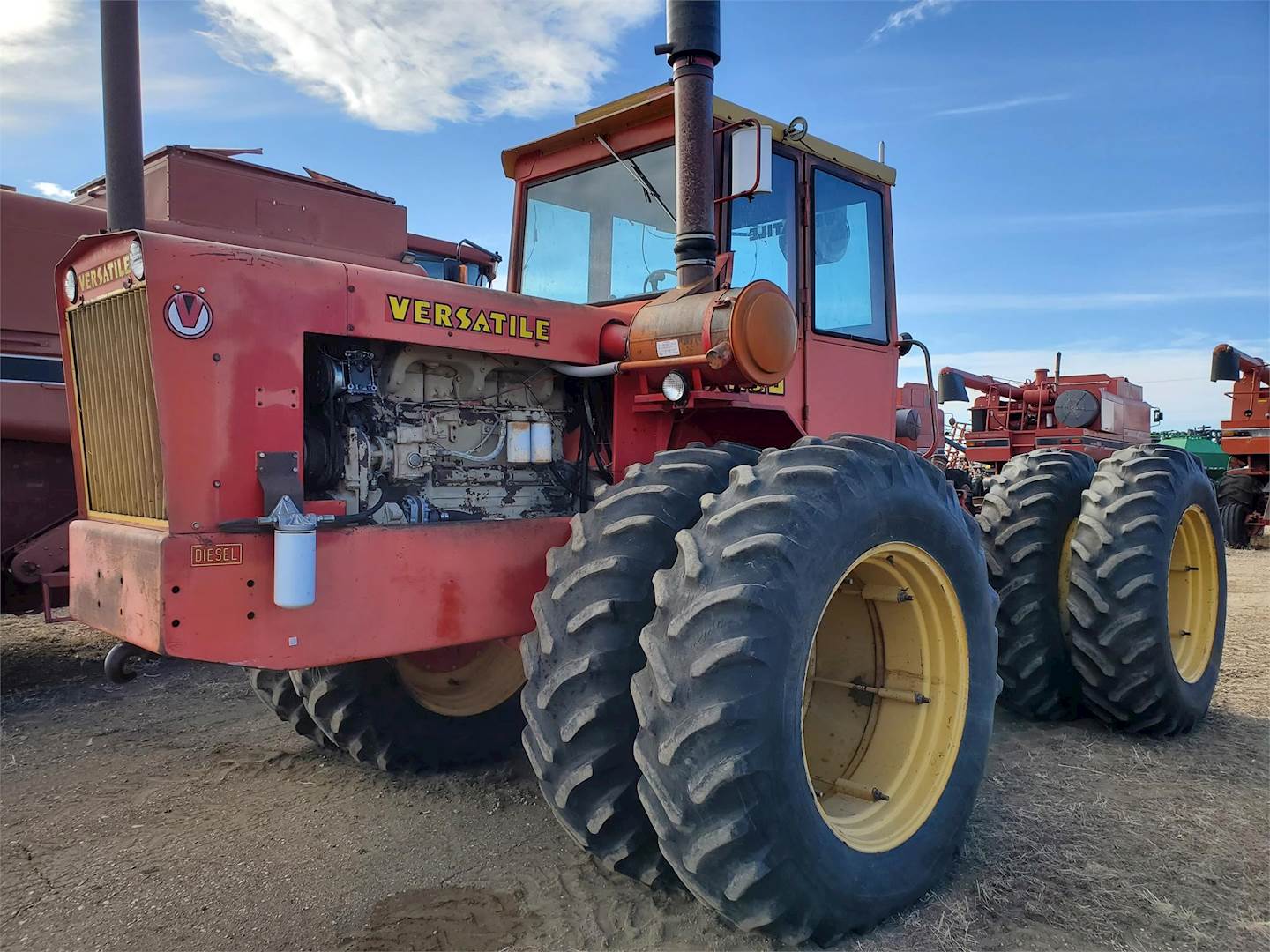

Versatile 800

Last Updated: June 2024

Overview

The Versatile 800 is a powerful four-wheel drive (4WD) articulated tractor, designed to handle a variety of demanding farming tasks. It comes equipped with an efficient Cummins N-855-C250 turbocharged diesel engine producing 250 horsepower, with a liquid-cooled design and a displacement of 855 cubic inches. Power is transferred through a gear-driven transmission with 12 forward gears and 4 reverse gears. Steering is articulated power, offering enhanced maneuverability. The tractor operates on 24.5-inch diameter tires and has an operating weight of 18100 lbs, making it robust for heavy-duty operations. The hydraulic system is of the open-center type, with a lift capacity of 12370 lbs at 24 inches for the rear hitch. This model's notable features also include a 12-volt electric starter, dual dry element air cleaner, ether injection pre-heating, and a ceramic disc clutch. Overall, the Versatile 800 caters well to large scale agricultural needs, providing durability and power.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 250

Transmission: gear

Drive Type: 4WD

Operating Weight: 18100

Fuel Type: diesel

Versatile 800 vs. Similar Tractors

Power Output
Excellent
Greater than 93% of similar tractors.
Hitch Capacity
Excellent
Greater than 97% of similar tractors.
Operating Weight
Average
Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
N-855-C250
Cooling Type
liquid-cooled
Cylinder Orientation
inline
Valve Configuration
-
Fuel Type
diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
855
Bore (in)
5.5
Stroke (in)
6
Rated RPM
2100
Power Output (hp)
250

Transmission

Type
gear
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
253
Width (in)
-
Height (in)
144 (exhaust)
Operating Weight (lb)
18100

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
articulated power
Coolant Capacity (qts)
49
Front Tire Diameter (in)
24.5
Front Tire Width (in)
-
Rear Tire Diameter (in)
24.5
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
III
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
12370 lbs @ 24 inches
Operator Station Type
-
Starter Type
electric 12 V
Brake Type
-
Hydraulic System Type
Open Center
