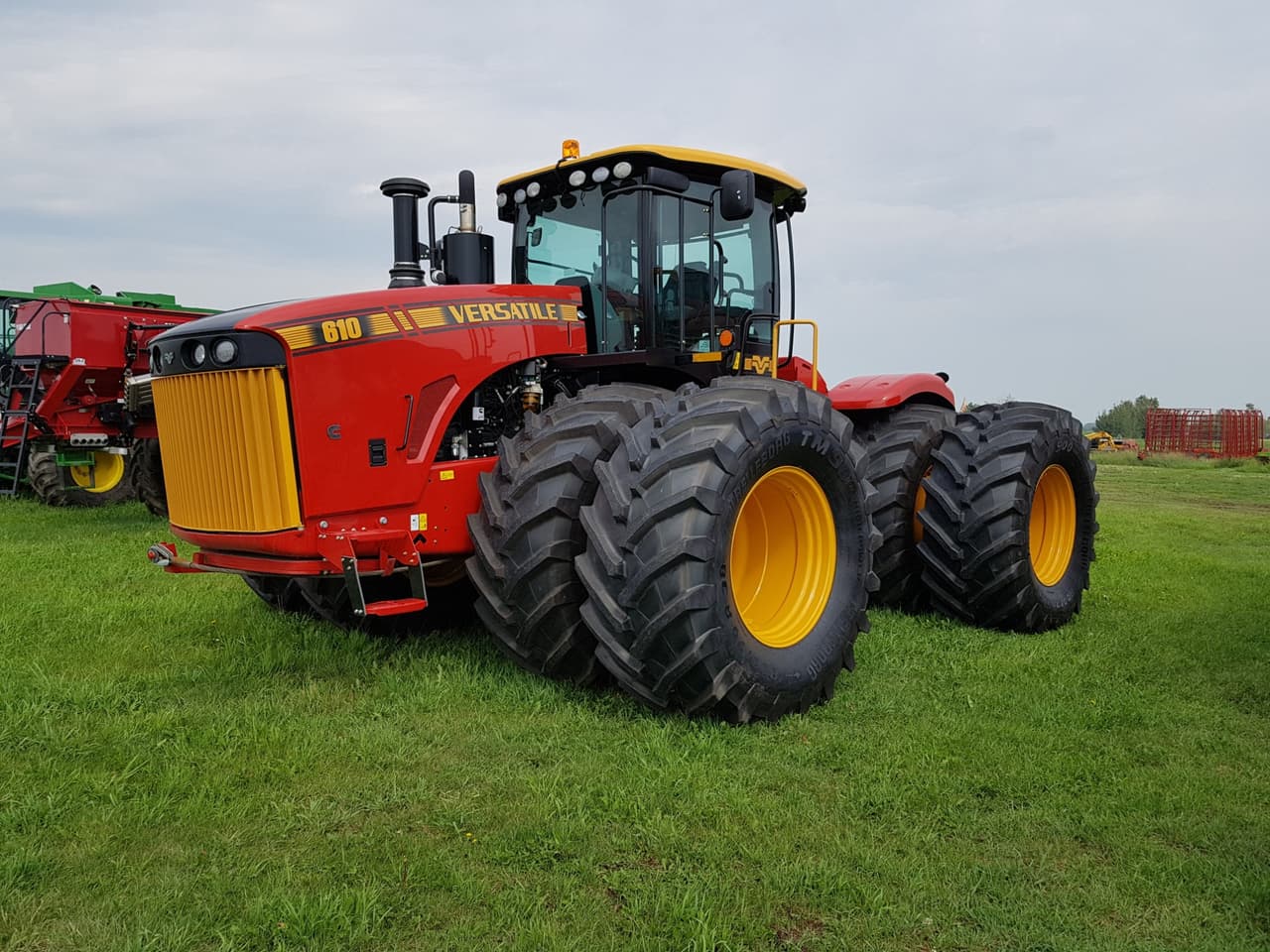

Versatile 610

Last Updated: June 2024

Overview

The Versatile 610 is a formidable player in the 4WD tractor category, designed to handle a variety of heavy-duty agricultural tasks. It boasts an articulated 4x4 chassis, providing excellent maneuverability and traction. Under the hood, a powerful Cummins QSX15 engine resides, turbocharged and aftercooled, with a liquid-cooled inline six-cylinder configuration. The engine delivers a reliable 605 horsepower, with a boosted maximum power output of 650 hp. This powerhouse is paired with a robust Caterpillar TA22 full power shift transmission, offering 16 forward and 4 reverse gears. With its considerable operating weight of 42,000 lbs and a maximum capacity of 61,000 lbs, the Versatile 610 is well equipped for heavy loads and challenging environments. Additional specifications such as precise tire dimensions, length, width, height, and various others are currently unspecified but play a critical role in ascertaining the tractor's suitability for certain tasks and conditions. The hydraulic system operates on a closed center load-sensing system, and while comprehensive details on the hitch type and PTO are not at hand, its Category IV rear hitch suggests compatibility with a broad array of attachments.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 605

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 42000

Fuel Type: Diesel

Versatile 610 vs. Similar Tractors

Power Output
Excellent
Greater than 98% of similar tractors.
Operating Weight
Above Average
Greater than 75% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
QSX15
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
912
Bore (in)
5.394
Stroke (in)
6.654
Rated RPM
1800
Power Output (hp)
605

Transmission

Type
Full power shift
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
42000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category IV
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Closed center load sensing
