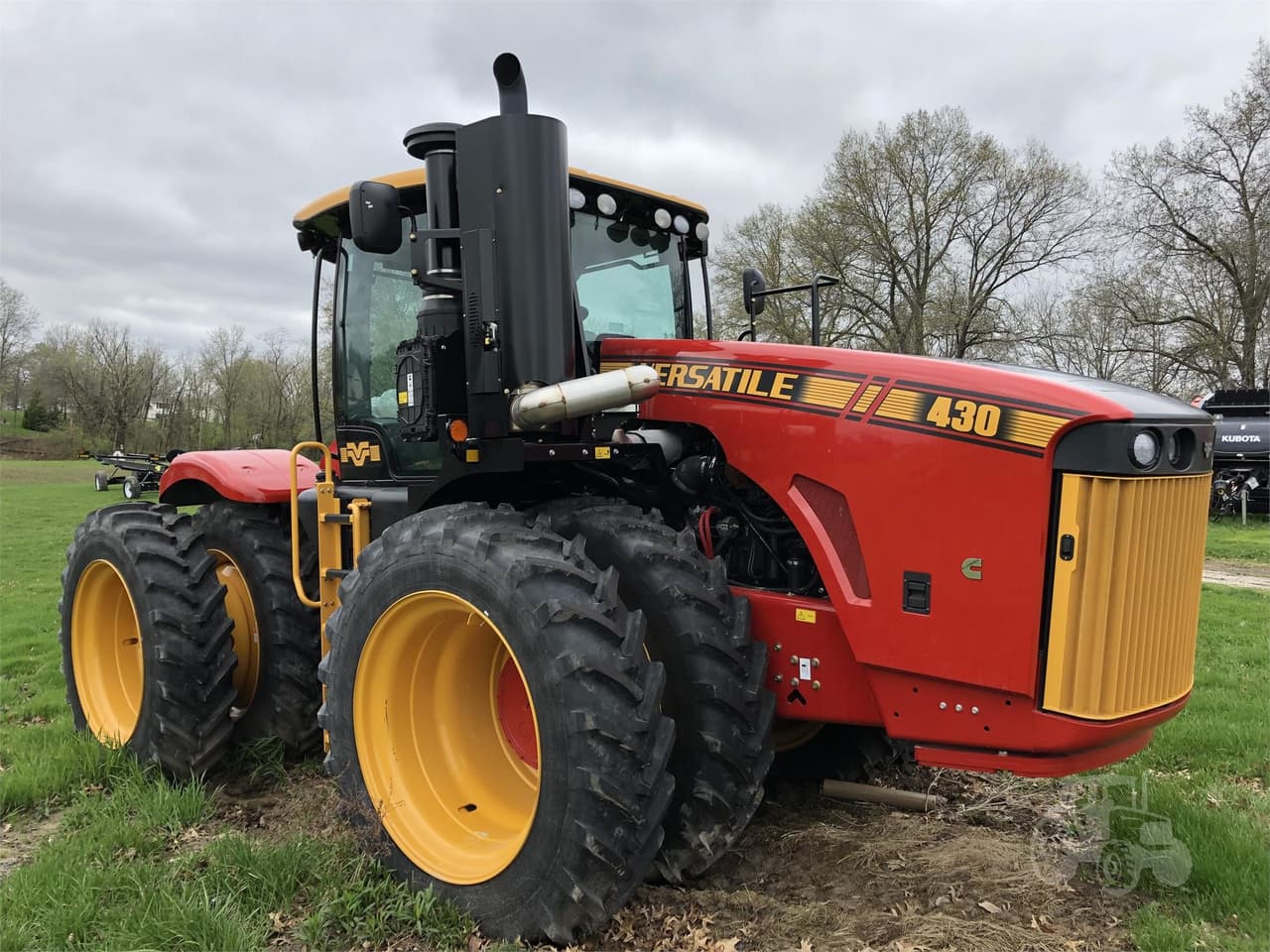

Versatile 430

Last Updated: June 2024

Overview

The Versatile 430 is an articulated 4WD tractor that provides a robust platform for heavy-duty agricultural tasks. It features a powerful Cummins QSG12 engine with a displacement of 720 cubic inches, capable of delivering 430 horsepower with a peak power of 473 hp for challenging field conditions. The aftercooled and turbocharged diesel engine paired with its high torque output of 1500 lb-ft at 1400 RPM supports demanding operations. Equipped with a 16-speed full power shift transmission, the Versatile 430 offers operators the versatility needed to carry out a variety of tasks with ease, including precisely maneuvering the machine through different speeds. Its large wheelbase of 135 inches contributes to stability and allows for significant operating weight and capacity. While specifics like tire size, body dimensions, and PTO details are not provided, the Versatile 430's ability to handle a maximum capacity of 43,000 lbs showcases its considerable power for large-scale agricultural endeavors.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 430

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 31500

Fuel Type: Diesel

Versatile 430 vs. Similar Tractors

Power Output
Excellent
Greater than 97% of similar tractors.
Operating Weight
Above Average
Greater than 73% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
QSG12
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
720
Bore (in)
5.2
Stroke (in)
5.66
Rated RPM
1800
Power Output (hp)
430

Transmission

Type
Full power shift
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
31500

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
IVN/III
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing
