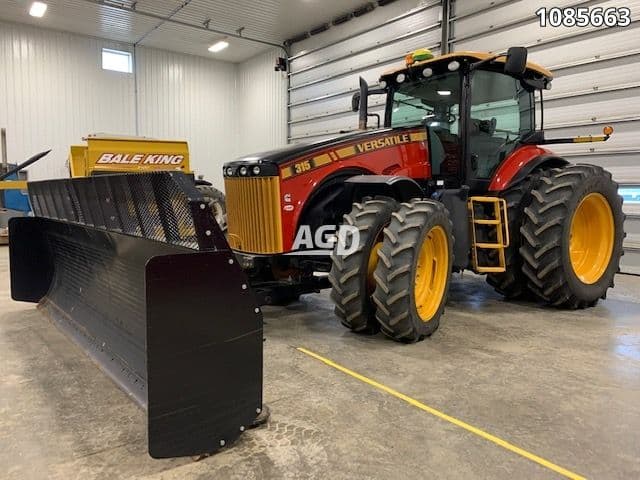

Versatile 315

Last Updated: June 2024

Overview

The Versatile 315 is a potent tractor designed for a variety of agricultural tasks. It's equipped with a powerful Cummins QSL9 engine that provides 310 horsepower and has a peak power output of 340 horsepower, along with an impressive torque of 995 lb-ft at 1500 RPM. This engine features a six-cylinder, liquid-cooled design, with a turbocharged and aftercooled induction system. With a displacement of 543 cubic inches and specific bore and stroke measurements of 4.49 inches and 5.69 inches respectively, it is built to offer substantial power and reliability. The tractor is driven by a power shift transmission with 16 forward and 4 reverse gears, aiding in handling challenging field work with ease. All these features are contained within a lengthy frame of 252 inches, a height of 134.7 inches, and an operational weight of 23,945 lbs. The Versatile 315 also possesses a category III/IIIN hitch at the rear and includes a closed-center load sensing hydraulic system. The detailed specifications combined with add-ons like a comfortable cab operator station and compliance with Tier IV emissions standards make this tractor an asset for modern farming operations.
Show more...

Key Specifications

Power Output: 310

Transmission: power shift

Operating Weight: 23945

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
Cummins
Model
QSL9
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged aftercooled
Cylinders
6
Displacement (ci)
543
Bore (in)
4.49
Stroke (in)
5.69
Rated RPM
1500
Power Output (hp)
310

Transmission

Type
power shift
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
252
Width (in)
-
Height (in)
134.7
Operating Weight (lb)
23945

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
III/IIIN
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
electric
Brake Type
-
Hydraulic System Type
closed-center load sensing
