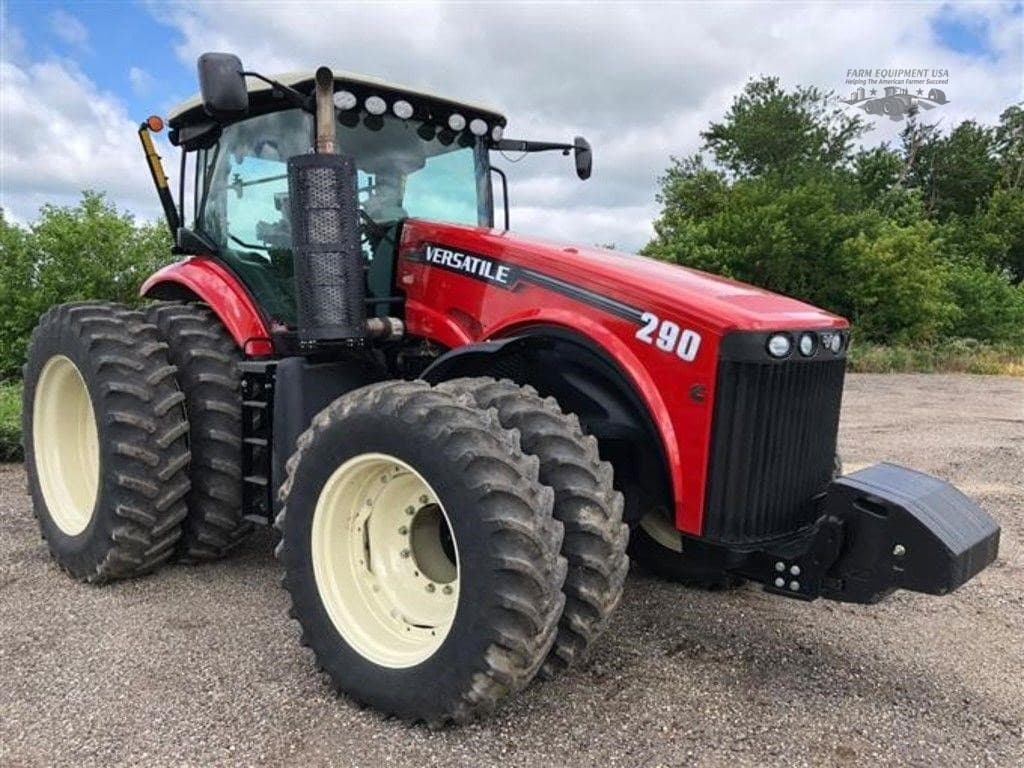

Versatile 290

Last Updated: June 2024

Overview

The Versatile 290 is a robust and powerful tractor that boasts a Cummins QSL9 engine with a power output of 290 hp and a peak horsepower of 326 hp. The engine, which is turbocharged and air-to-air aftercooled, also provides a substantial 985 lb-ft of torque at 1500 RPM, ensuring strong performance in a variety of demanding applications. It features a liquid-cooled inline configuration with six cylinders and has a displacement of 543 cubic inches. The tractor comes equipped with a full power shift transmission that includes 16 forward and 9 reverse gears, enabling efficient field operations. Additionally, it has a closed center load sensing hydraulic system. The tractor stands tall at 134.7 inches at the cab, measures 252 inches in length, and maintains a considerable operating weight of 23,945 lbs. This model has the capacity to handle an increased weight up to 30,685 lbs. With a large wheelbase of 124.6 inches, the Versatile 290 provides stability in a variety of terrain, with adjustable front and rear treads to suit specific needs.
Show more...

Key Specifications

Power Output: 290

Transmission: Full power shift

Operating Weight: 23945

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Cummins
Model
QSL9
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged and air-to-air aftercooled
Cylinders
6
Displacement (ci)
543
Bore (in)
4.49
Stroke (in)
5.69
Rated RPM
2100
Power Output (hp)
290

Transmission

Type
Full power shift
Forward Gears
16
Reverse Gears
9
Total Gears
-

Dimensions

Length (in)
252
Width (in)
-
Height (in)
134.7 (cab)
Operating Weight (lb)
23945

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
III/IIIN
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing (CCLS)
