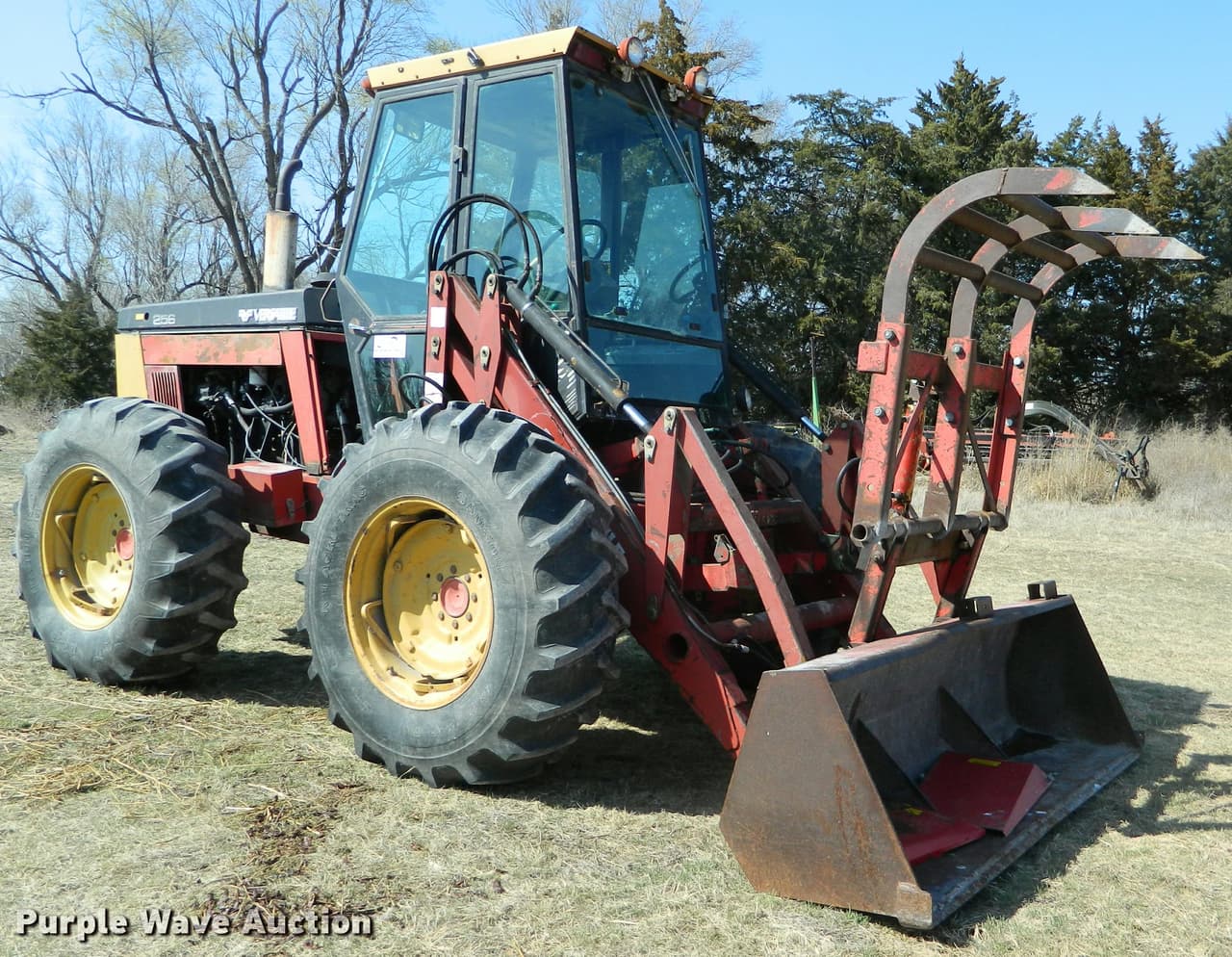

Versatile 256

Last Updated: June 2024

Overview

The Versatile 256 is an articulated four-wheel drive (4WD) tractor, designed to operate effectively in various agricultural settings. It features a Cummins 4BT 3.9 engine that is turbocharged and liquid-cooled, offering a power output of 100.6 horsepower. The engine has a displacement of 239 ci and operates at a rated RPM of 2500. The 4-cylinder diesel engine provides substantial torque at 250 lb-ft, ideal for a range of heavy-duty tasks. This tractor employs a hydrostatic transmission with infinite (3-range) forward and reverse gears, allowing for optimal control and efficiency. It has a Category 3 rear hitch and operates using a closed center load sensing hydraulic system. Steering is made easier with power steering that has a flow of 5 gpm. The Versatile 256 offers a balance of power and precision, catered to meet the demands of modern farming operations.
Show more...

Key Specifications

Power Output: 100.6

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 11650

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Cummins
Model
4BT 3.9
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
239
Bore (in)
4.016
Stroke (in)
4.724
Rated RPM
2500
Power Output (hp)
100.6

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
112
Operating Weight (lb)
11650

Power Take-Off (PTO)

PTO Type
Optional Transmission or Live PTO
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
23.2
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
28
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
II/I*
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Closed center load sensing
