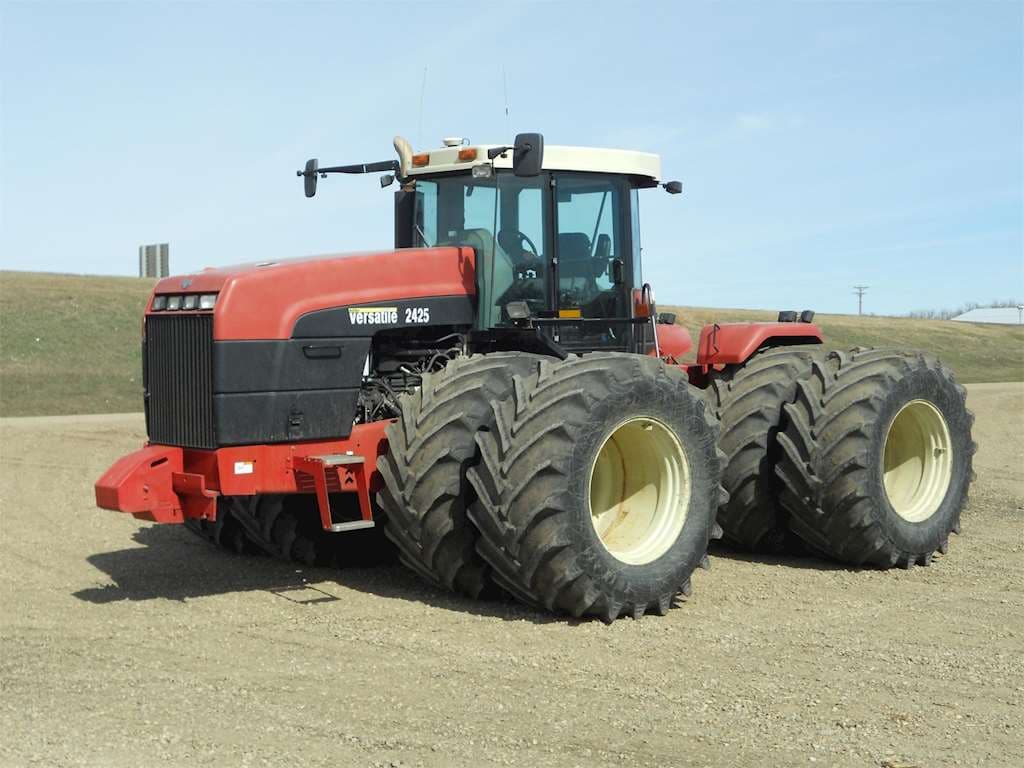

Versatile 2425

Last Updated: June 2024

Overview

The Versatile 2425 is a robust, large-frame articulated 4WD tractor designed to handle heavy-duty farming applications. With a 425 horsepower Cummins N14 turbocharged diesel engine, it offers ample power for a variety of tasks. The engine's six-cylinder configuration, overhead valves, 855 cubic inches displacement, and turbocharged induction system ensure powerful and reliable performance. The tractor's chassis is a 4x4 articulated 4WD configuration which, along with articulated power steering, provides excellent maneuverability for its size. Transmission comes in the form of a 12-speed partially synchronized QuadShift III, with 12 forward and 4 reverse gears, facilitating versatility in speed and power delivery. With a length of 266 inches, a height of 146.5 inches, and a wheelbase of 133 inches, the Versatile 2425 is a sizeable tractor with substantial ground clearance of 19.8 inches, suitable for varied agricultural tasks. The tractor also features a hydraulic system with a closed center load sensing design and supports hitch Category IVN and III systems for towing and tool operation.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 425

Transmission: Partially synchronized

Drive Type: 4WD

Fuel Type: Diesel

Versatile 2425 vs. Similar Tractors

Power Output
Excellent
Greater than 97% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
N14
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
OHV (Overhead Valve)
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
855
Bore (in)
5.5
Stroke (in)
6
Rated RPM
2100
Power Output (hp)
425

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
266
Width (in)
-
Height (in)
146.5
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Articulated power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
IVN/III (Likely indicating Category IVN and Category III)
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (from "Engine - Starter volts: 12")
Brake Type
-
Hydraulic System Type
Closed center load sensing
