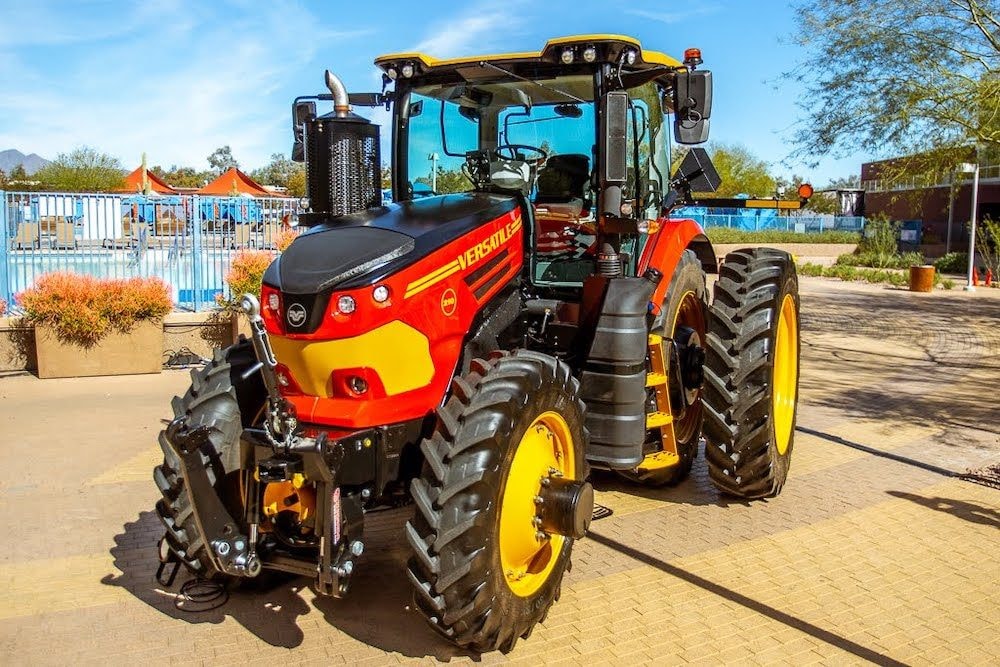

Versatile 175 Nemesis

Last Updated: June 2024

Overview

The Versatile 175 Nemesis features a Cummins B6.7 engine with a turbocharged aftercooled diesel system and liquid cooling, producing 175 horsepower at 2100 RPM. The engine is capable of displacing 408.2 cubic inches with a bore and stroke measuring at 4.21 inches and 4.88 inches respectively. The tractor comes equipped with a ZF TPT20 partial power shift transmission, offering 30 forward and 15 reverse gears, providing versatility in various agricultural tasks. The tractor's rear three-point hitch system conforms to Categories III/IIIN, and it features a closed center load-sensing hydraulic system. With a 114-inch wheelbase and a cab height of 128 inches, the Nemesis has an impressive presence and promises comfort and utility. It operates on standard agricultural tires, with optional sizes available for different tasks. Weighing in at 19,500 lbs, this machine is built for substantial agricultural applications, maintaining Versatile's tradition of ruggedness and reliability. Please note, however, some specifications such as dimensions beyond height, and tire specifics aside from types offered, are not available in the given data.
Show more...

Key Specifications

Power Output: 175

Transmission: Partial Power Shift

Operating Weight: 19500

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Cummins
Model
B6.7
Cooling Type
Liquid
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Aftercooled
Cylinders
6
Displacement (ci)
408.2
Bore (in)
4.21
Stroke (in)
4.88
Rated RPM
2100
Power Output (hp)
175

Transmission

Type
Partial Power Shift
Forward Gears
30
Reverse Gears
15
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
128 (Height of cab)
Operating Weight (lb)
19500

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag): Front: 600/65R28, Rear: 710/70R38 | Optional (ag): Front: 380/85R34, Rear: 380/90R50
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Categories III/IIIN)
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed Center Load-Sensing
