Ventrac 3400

Last Updated: June 2024

Overview

The Ventrac 3400 is a versatile lawn tractor that has been part of Ventrac's product line, offering a unique combination of compact power and agility due to its articulated 4WD chassis. It is powered by either a Briggs & Stratton Vanguard M38 air-cooled gasoline engine or a Kubota D902 liquid-cooled diesel engine, each providing robust performance for a range of tasks. With belt-driven hydrostatic transmission, the operator can expect smooth infinite forward and reverse motion control. Equipped with a sturdy two-post folding ROPS for safety, and a convenient Ventrac Mount System for various attachments, the 3400 model provides a practical platform for a variety of lawn care needs. While the specific manufacturing years are not provided, the design caters to intuitive operation with articulated power steering and easy maintenance, making it a reliable choice for both residential and commercial use.

Key Specifications

Category: Lawn and Garden

Power Output: 20.0 (Gasoline), 22.0 (Diesel)

Transmission: Belt-driven hydrostatic

Drive Type: 4WD

Operating Weight: 1,219

Fuel Type: Gasoline, Diesel

Image Gallery

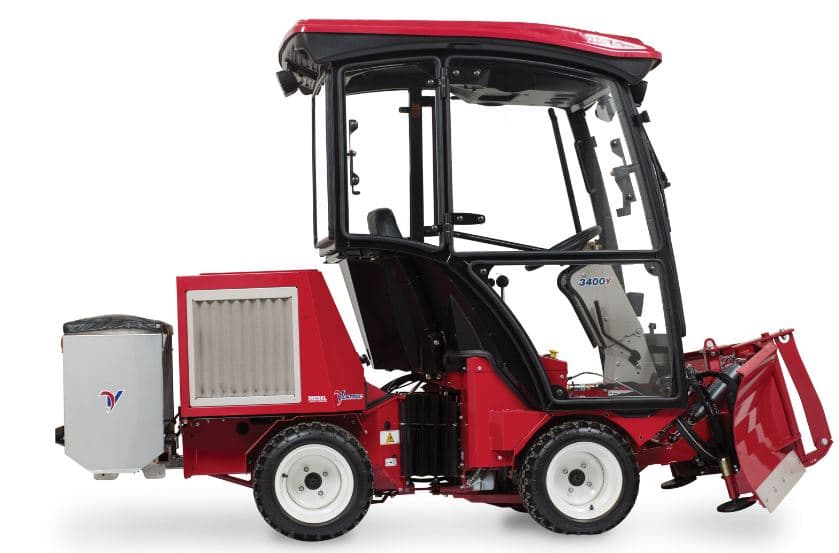

Ventrac 3400 Tractor

Ventrac 3400 vs. Similar Tractors

Operating Weight

Poor

Greater than 3% of similar tractors.

Technical Specifications

Engine

Manufacturer: Briggs & Stratton, Kubota
Model: Vanguard M38, D902
Cooling Type: Air-cooled, Liquid-cooled
Cylinder Orientation: V (Briggs & Stratton), Inline (Kubota)
Valve Configuration: -
Fuel Type: Gasoline, Diesel
Induction Type: -
Cylinders: 2 (Briggs & Stratton), 3 (Kubota)
Displacement (ci): 38.3, 54.8
Bore (in): 2.95, 2.8
Stroke (in): 2.76, 2.91
Rated RPM: 3,600 (Gasoline), 2,850 (Diesel)
Power Output (hp): 20.0 (Gasoline), 22.0 (Diesel)

Transmission

Type: Belt-driven hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 76
Width (in): 40.2
Height (in): 71.7
Operating Weight (lb): 1,219

Power Take-Off (PTO)

PTO Type: Independent with electric clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: Articulated power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: -
Hitch Type: Ventrac Mount System
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Two-post folding ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
