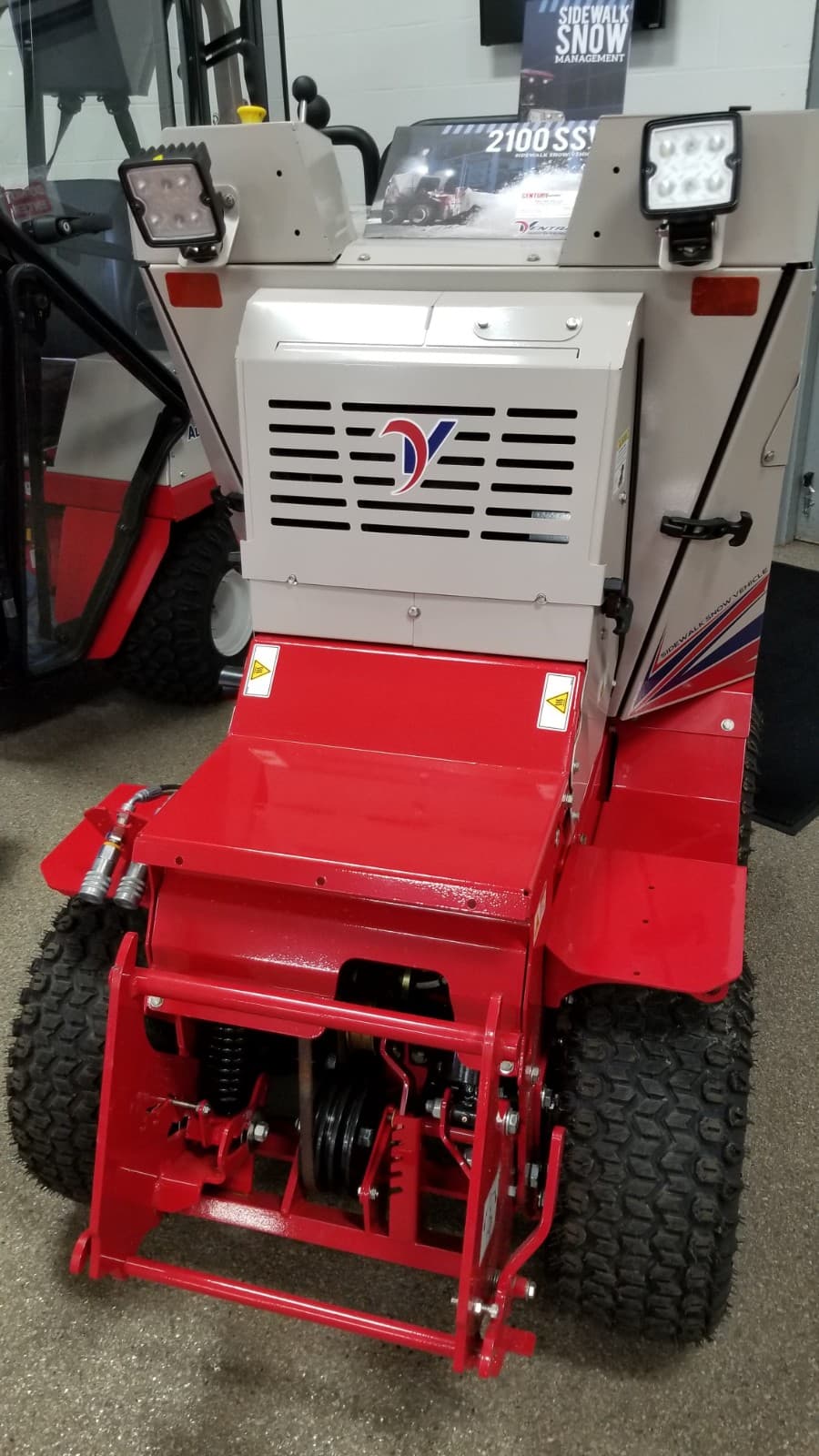

Ventrac 2100C SSV

Last Updated: June 2024

Overview

The Ventrac 2100C SSV is an industrial 4WD tractor known for its versatility and power in a compact frame. Equipped with a Kawasaki FS600V gasoline engine, it boasts an 18.5 horsepower output and an air-cooled vertical-shaft V-Twin design. The powerplant's peak torque of 32.5 lb-ft is reached at 2200 RPM, with a broad operating range of 1550-3600 RPM, suitable for a variety of tough tasks. Its hydrostatic transmission by Hydro-Gear permits infinite forward and reverse speeds, allowing for precise control in various conditions. The tractor's compact 67-inch length and 34-inch width enable operation in confined spaces. The 2100C SSV is designed to handle demanding jobs with a weight of 970 lbs and power steering for ease of maneuverability.
Show more...

Key Specifications

Category: Industrial

Power Output: 18.5

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 970

Fuel Type: Gasoline

Image Gallery

Ventrac 2100C SSV Tractor Ventrac 2100C SSV Tractor Ventrac 2100C SSV Tractor Ventrac 2100C SSV Tractor Ventrac 2100C SSV Tractor Ventrac 2100C SSV Tractor Ventrac 2100C SSV Tractor Ventrac 2100C SSV Tractor Ventrac 2100C SSV Tractor Ventrac 2100C SSV Tractor

Ventrac 2100C SSV vs. Similar Tractors

Power Output
Poor
Greater than 6% of similar tractors.
Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kawasaki
Model
FS600V
Cooling Type
Air-cooled
Cylinder Orientation
Vertical
Valve Configuration
OHV
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
36.8
Bore (in)
2.87
Stroke (in)
2.84
Rated RPM
3600
Power Output (hp)
18.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
67
Width (in)
34
Height (in)
55
Operating Weight (lb)
970

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
