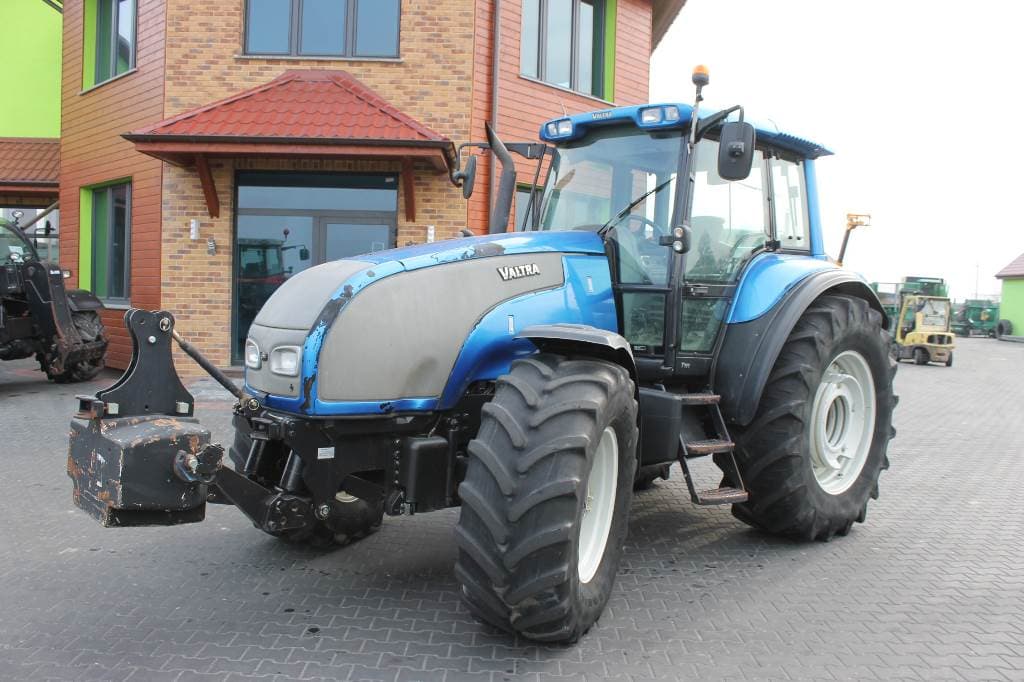

Valtra T160

Last Updated: June 2024

Overview

The Valtra T160 is a robust row-crop tractor that comes equipped with a 4x4 MFWD 4WD chassis, ensuring superior traction in various agricultural tasks. The power steering system contributes to easier maneuverability in the field. Under the hood, this model houses a Sisu Diesel 620 DSRAE engine, which is an intercooled turbocharged diesel engine with 6 cylinders, providing a power output of 158 hp at a rated RPM of 2100. It has a displacement of 402.6 cubic inches, with bore and stroke measurements of 4.252 and 4.724 inches, respectively. The tractor's transmission is a 3-speed power shift offering 36 gears for both forward and reverse movement, matched with a wet disc clutch, designed for responsive and adaptable operation. The operating weight is substantial at 13118 lbs, contributing to its stability and capability to handle heavy-duty tasks. The tractor guarantees comfort with a cab-type operator station for the user. It rides on ag tires, though specific tire dimensions are not provided, and it features a load-sensing hydraulic system, which adapts to the demands of various attachments and implements.
Show more...

Key Specifications

Category: Row Crop

Power Output: 158

Transmission: 3-speed power shift

Drive Type: 4WD

Operating Weight: 13118

Fuel Type: Diesel

Valtra T160 vs. Similar Tractors

Power Output
Average
Greater than 57% of similar tractors.
Operating Weight
Average
Greater than 52% of similar tractors.

Technical Specifications

Engine

Manufacturer
Sisu Diesel
Model
620 DSRAE
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Intercooled turbocharged
Cylinders
6
Displacement (ci)
402.6
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2100
Power Output (hp)
158

Transmission

Type
3-speed power shift
Forward Gears
36
Reverse Gears
36
Total Gears
-

Dimensions

Length (in)
202.7
Width (in)
92
Height (in)
119.3 (assuming cab height as the main height reference)
Operating Weight (lb)
13118

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category III
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (assumed from "Height (cab)")
Starter Type
Electric (assumed from "Starter volts" and "Starter power")
Brake Type
-
Hydraulic System Type
Load sensing
