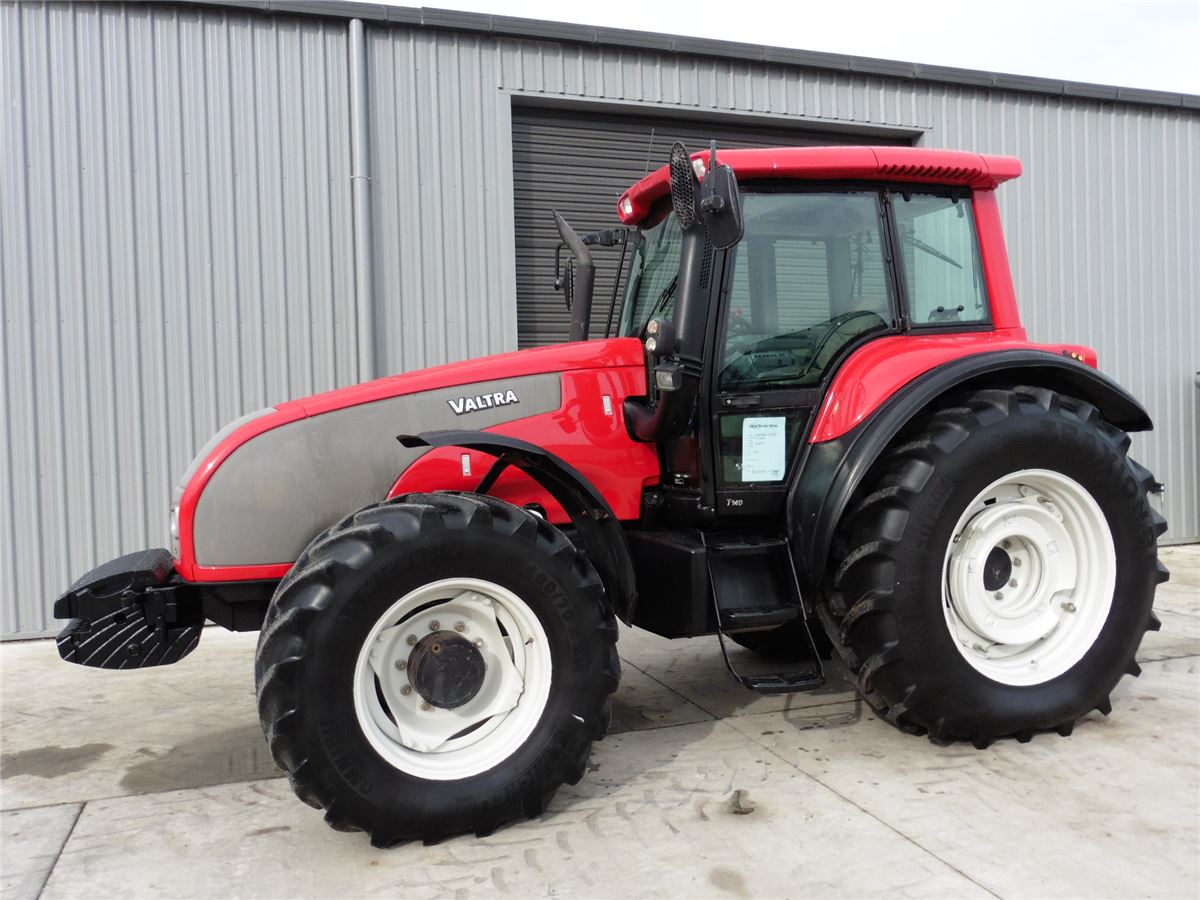

Valtra T140

Last Updated: June 2024

Overview

The Valtra T140 is a robust row-crop tractor that combines a comfortable operator environment with the power and efficiency required for a wide range of agricultural tasks. Featuring a Sisu Diesel 620 DSRAE engine, this model cranks out a respectable 140 horsepower from its 6.6-liter, 6-cylinder turbocharged intercooled diesel engine, providing ample torque at lower RPMs for heavy pulling. A liquid cooling system with a viscous fan ensures consistent engine temperature control. It boasts a 36-speed power shift transmission, allowing for great versatility in speed selection for both forward and reverse operation. Equipped with a 4WD chassis and power steering, the T140 is designed with maneuverability in mind. The unit's substantial 12,456-pound operating weight, paired with a 108.2-inch wheelbase, aids in stability when navigating uneven terrain. The cab-high operator station height of 116.5 inches and the height to the exhaust at 114.2 inches provide heightened visibility. The tractor rides on heavy-duty agricultural tires, with standard sizes of 16.9R28 at the front and 20.8R38 at the rear, but the precise width and diameter are not listed in the provided data. This tractor is equipped with a Category 3 hitch at the rear, widely adaptable for various attachments and implements, but the lift capacity remains unspecified.
Show more...

Key Specifications

Category: Row Crop

Power Output: 140

Transmission: Power shift

Drive Type: 4WD

Operating Weight: 12456

Fuel Type: Diesel

Valtra T140 vs. Similar Tractors

Power Output
Average
Greater than 48% of similar tractors.
Operating Weight
Average
Greater than 48% of similar tractors.

Technical Specifications

Engine

Manufacturer
Sisu Diesel
Model
620 DSRAE
Cooling Type
Liquid-cooled with viscous fan
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Intercooled turbocharged
Cylinders
6
Displacement (ci)
402.6
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
1800
Power Output (hp)
140

Transmission

Type
Power shift
Forward Gears
36
Reverse Gears
36
Total Gears
-

Dimensions

Length (in)
202.7
Width (in)
92
Height (in)
Height (cab): 116.5 | Height (exhaust): 114.2
Operating Weight (lb)
12456

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Rear Type: III
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load sensing
