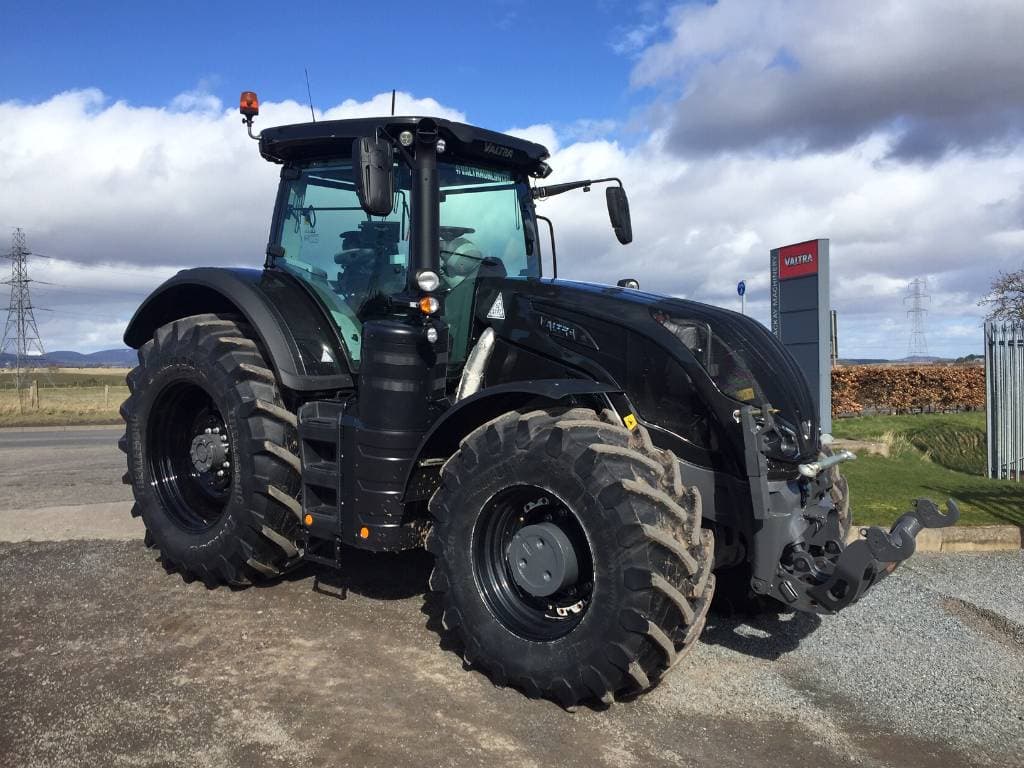

Valtra S324

Last Updated: June 2024

Overview

The Valtra S324 is a robust row-crop tractor equipped to handle a variety of agricultural tasks efficiently. Its chassis, a 4x4 MFWD 4WD, provides excellent traction and stability in diverse field conditions. The tractor is powered by a 316 hp, 6-cylinder AGCO Power 84 AWF liquid-cooled diesel engine, which boasts a substantial torque of 1025 lb-ft at 1500 RPM. For those demanding operations that require continuous variability, the Valtra S324 comes with a continuously-variable transmission allowing infinite forward and reverse gears, making it versatile for different tasks. It has a potent power steering system to ensure maneuverability. Dimensionally, the tractor measures 191.7 inches in length, 100.4 inches in width, and it stands 133.2 inches tall with the cab. With an operating weight of 22708 lbs, it strikes a balance between strength and agility. The standard ag tires fitted are front: 620/65R34 and rear: 710/75R42, matched to its row-crop designation. The tractor features a closed center load sensing hydraulic system, essential for precision agriculture applications.
Show more...

Key Specifications

Category: Row Crop

Power Output: 316

Transmission: continuously-variable transmission

Operating Weight: 22708

Fuel Type: turbocharged intercooled diesel

Valtra S324 vs. Similar Tractors

Power Output
Above Average
Greater than 89% of similar tractors.
Operating Weight
Above Average
Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
84 AWF
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
turbocharged intercooled diesel
Induction Type
-
Cylinders
6-cylinder
Displacement (ci)
512.6
Bore (in)
4.37
Stroke (in)
5.71
Rated RPM
1500
Power Output (hp)
316

Transmission

Type
continuously-variable transmission
Forward Gears
infinite
Reverse Gears
infinite
Total Gears
infinite

Dimensions

Length (in)
191.7
Width (in)
100.4
Height (in)
133.2
Operating Weight (lb)
22708

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
-
Steering Type
power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
IV/III
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
electric
Brake Type
-
Hydraulic System Type
closed center load sensing
