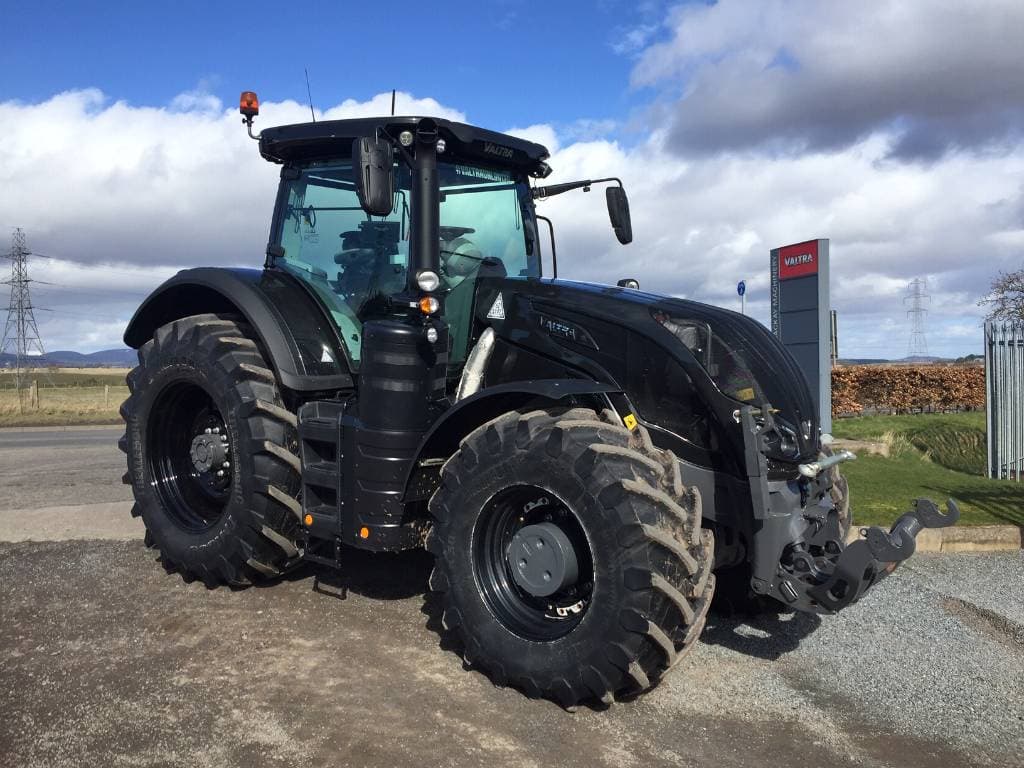

Valtra S322

Last Updated: June 2024

Overview

The Valtra S322 is a heavyweight champion in the field of row-crop tractors. Built for demanding farming tasks that require both strength and precision, this machine is propelled by a formidable six-cylinder SisuDiesel 84 CTA 4V engine, complete with turbocharged and intercooled capabilities, ensuring efficient operation under various conditions. With a liquid-cooled system that supports the 316 hp output, and capable of reaching up to 345 hp, this tractor is well-suited for high-power requirements. The tractor's continuously-variable transmission (CVT) allows for infinite gear ratios in both forward and reverse, affording seamless changes in speed without the need to engage a clutch. At 22708 pounds, the S322 is a true workhorse, with a 4x4 MFWD 4WD chassis for optimal traction and power steering for better maneuverability. With an ample wheelbase of 122.2 inches, it's designed for stability across varying terrains. The tractor's dimensions speak to its robust build, being 191.7 inches long and 100.4 inches wide, with a cab height reaching 133.2 inches. The S322's capacity for wearisome fieldwork is undeniable and it displays a prowess befitting the most exacting agricultural demands.
Show more...

Key Specifications

Category: Row Crop

Power Output: 316

Transmission: Continuously-variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 22708

Fuel Type: Diesel

Valtra S322 vs. Similar Tractors

Power Output
Above Average
Greater than 89% of similar tractors.
Operating Weight
Above Average
Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer
SisuDiesel
Model
84 CTA 4V
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
512.6
Bore (in)
4.37
Stroke (in)
5.71
Rated RPM
2200
Power Output (hp)
316

Transmission

Type
Continuously-variable transmission (CVT)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
191.7
Width (in)
100.4
Height (in)
133.2 (cab height)
Operating Weight (lb)
22708

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
IV/III
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing
