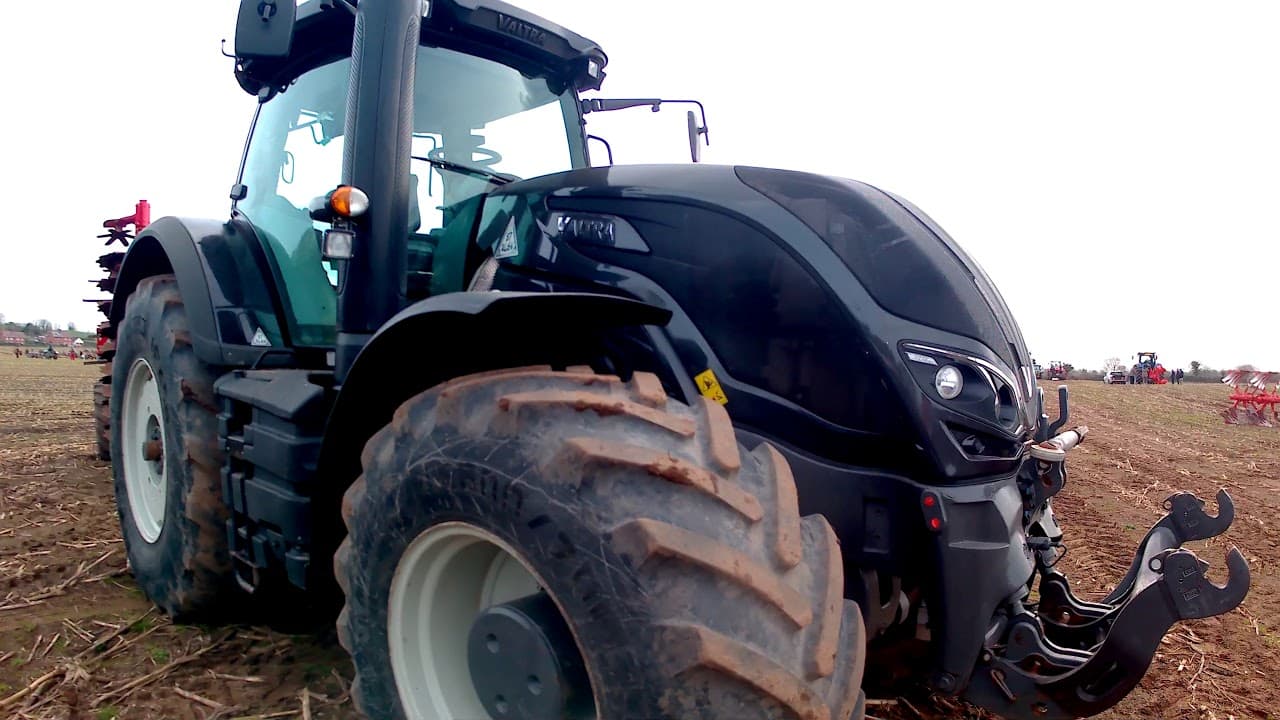

Valtra S230

Last Updated: June 2024

Overview

The Valtra S230 is a robust row-crop tractor, best known for its significant power output and modern technology. It comes with a powerful six-cylinder SisuDiesel 645 ESBAE engine, boasting a displacement of 512.6 cubic inches and producing 227 horsepower at a rated 2200 RPM, for ample field performance. Featuring a liquid-cooled, turbocharged intercooled diesel engine, it provides good efficiency and power density suited for a variety of heavy-duty tasks. The S230 also excels in mobility due to its four-wheel drive (4WD) and power steering. Additionally, the model is equipped with a 40-speed four-speed power shift, allowing for extensive control over a large range of speeds. With large agricultural tires and a wheelbase of 121.3 inches (308 cm), this machine ensures stability and traction across different terrains. The durable build is complemented by its operating weight of 19401 lbs (8800 kg), making it sturdy and reliable in various agricultural applications. Comfort is also considered with the inclusion of a cab that provides the operator with a protected working environment. While specifics such as PTO speeds and hitch details are not provided in the data, the presence of a closed-center hydraulic system suggests the tractor is well-equipped for a variety of implement uses. The tractor's dimensions solidify its presence on the field with a length of 200.8 inches (510 cm), a width of 98.4 inches (249 cm), and a height of 133.9 inches (340 cm) measured to the cab.
Show more...

Key Specifications

Category: Row Crop

Power Output: 227

Transmission: Power shift

Drive Type: 4WD

Operating Weight: 19401

Fuel Type: Diesel

Valtra S230 vs. Similar Tractors

Power Output
Above Average
Greater than 79% of similar tractors.
Operating Weight
Average
Greater than 70% of similar tractors.

Technical Specifications

Engine

Manufacturer
SisuDiesel
Model
645 ESBAE
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
512.6
Bore (in)
4.37
Stroke (in)
5.71
Rated RPM
2200
Power Output (hp)
227

Transmission

Type
Power shift
Forward Gears
40
Reverse Gears
40
Total Gears
-

Dimensions

Length (in)
200.8
Width (in)
98.4
Height (in)
133.9
Operating Weight (lb)
19401

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
30
Front Tire Width (in)
-
Rear Tire Diameter (in)
42
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed Center
