Valtra Q285

Last Updated: June 2024

Overview

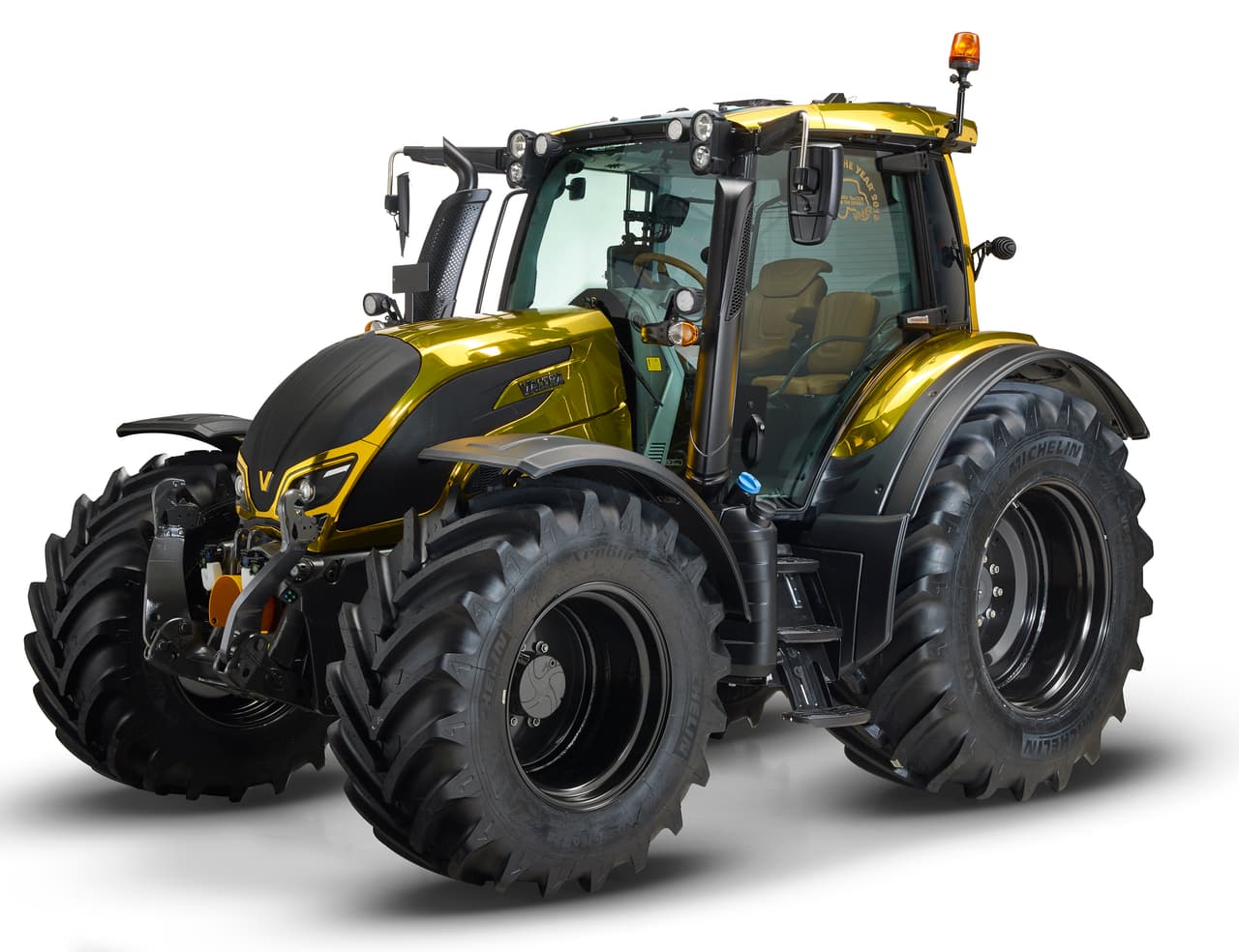

The Valtra Q285 is a robust and versatile tractor with a focus on power and performance. It features a turbocharged intercooled diesel engine by AGCO Power, designated as the 74 LFTN-D5, which delivers a strong power output of 281.6 horsepower, with a maximum power reaching up to 409 horsepower. The liquid-cooled engine displaces 449.6 cubic inches, with a bore and stroke of 4.25 and 5.28 inches respectively. It adheres to Stage V emissions standards, ensuring both power and environmental consideration. The engine is designed for efficiency with an oil change interval of 600 hours, demonstrates significant torque of 944.1 lb-ft at 1500 RPM, and operates between 850 and 1950 RPM. The tractor operates on a continuously variable transmission offering infinity adjustable forward and reverse gears, providing flexibility for a range of tasks. The sizeable wheelbase of 120.1 inches and corresponding operating weight of 20283 lbs underline the ability of the Q285 to handle substantial workloads. Standard ag tires are sized at 600/70R30 for the front and 710/70R42 for the rear. The tractor measures 218.7 inches in length, 100.4 inches in width, and has a cab height of 131.4 inches. Its maximum allowable weight is 35274 lbs, providing significant carrying capacity.
Show more...

Key Specifications

Power Output: 281.6

Transmission: Continuously-Variable Transmission

Operating Weight: 20283

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
74 LFTN-D5
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
449.6
Bore (in)
4.25
Stroke (in)
5.28
Rated RPM
1950
Power Output (hp)
281.6

Transmission

Type
Continuously-Variable Transmission
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
218.7
Width (in)
100.4
Height (in)
131.4
Operating Weight (lb)
20283

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed-center load sensing
