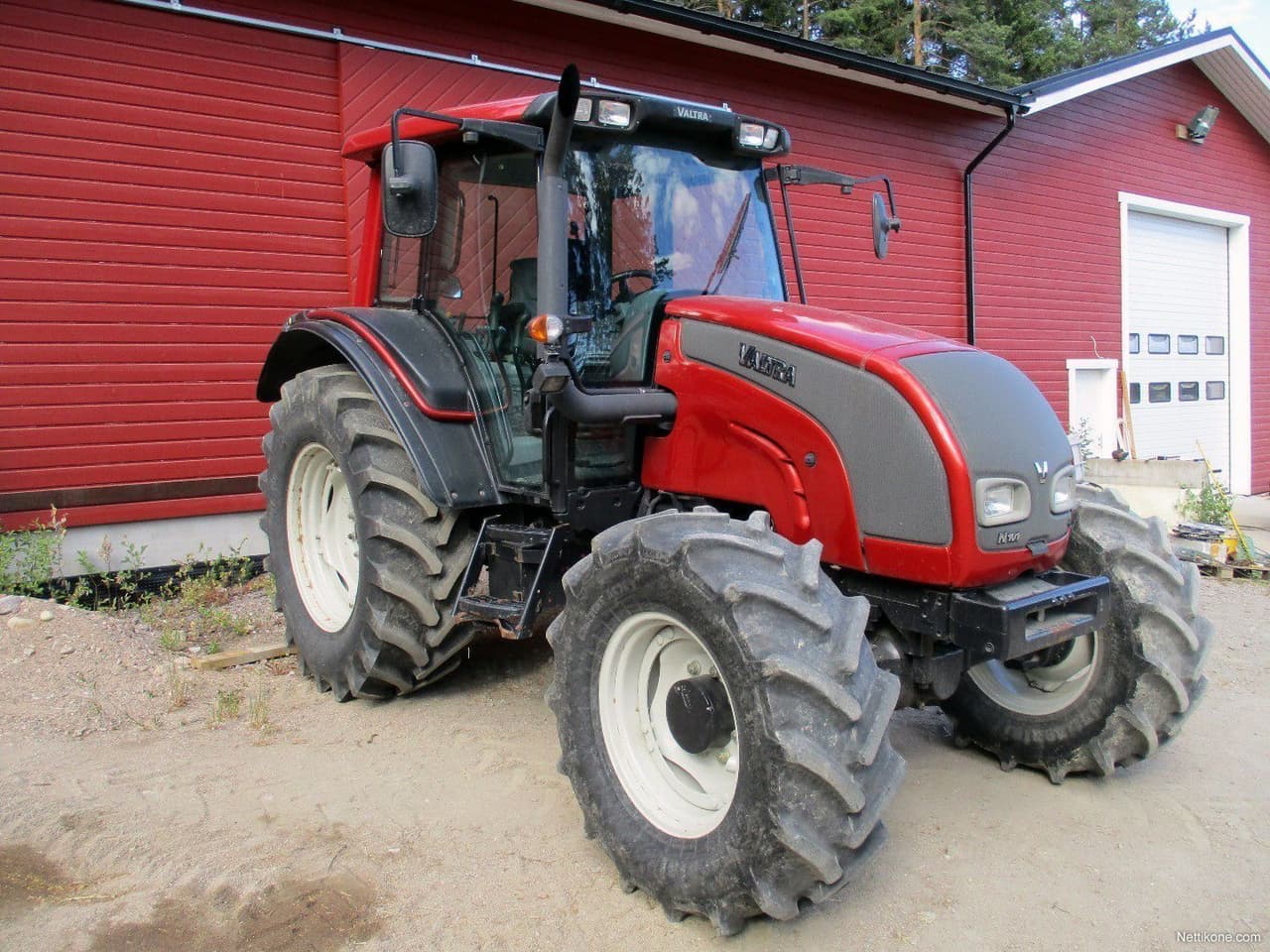

Valtra N101

Last Updated: June 2024

Overview

The Valtra N101 is a versatile utility tractor that boasts a 4-wheel-drive chassis with an MFWD system, appealing for various agricultural tasks. Equipped with a robust SisuDiesel 44CTA turbocharged and intercooled engine, it offers an engine displacement of 268.5 cubic inches and operates at a power output of 110 hp at 2200 RPM, suited for demanding operations. The model features a high-capacity transmission with 36 forward and reverse gears, accommodating a wide range of speeds and tasks. Designed to handle substantial loads, the N101 has an operating weight of 10,690 lbs and dimensions conducive to stability and maneuverability, with a length of 177.1 inches, a width of 89.3 inches, and a height of 114 inches. This tractor is well-regarded for its power and capability in the utility tractor market segment.
Show more...

Key Specifications

Category: Utility

Power Output: 110

Drive Type: 4WD

Operating Weight: 10,690

Fuel Type: Diesel

Valtra N101 vs. Similar Tractors

Power Output
Above Average
Greater than 85% of similar tractors.
Operating Weight
Poor
Greater than 5% of similar tractors.

Technical Specifications

Engine

Manufacturer
SisuDiesel
Model
44CTA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged/Intercooled
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
110

Transmission

Type
-
Forward Gears
36
Reverse Gears
36
Total Gears
36

Dimensions

Length (in)
177.1
Width (in)
89.3
Height (in)
114
Operating Weight (lb)
10,690

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
