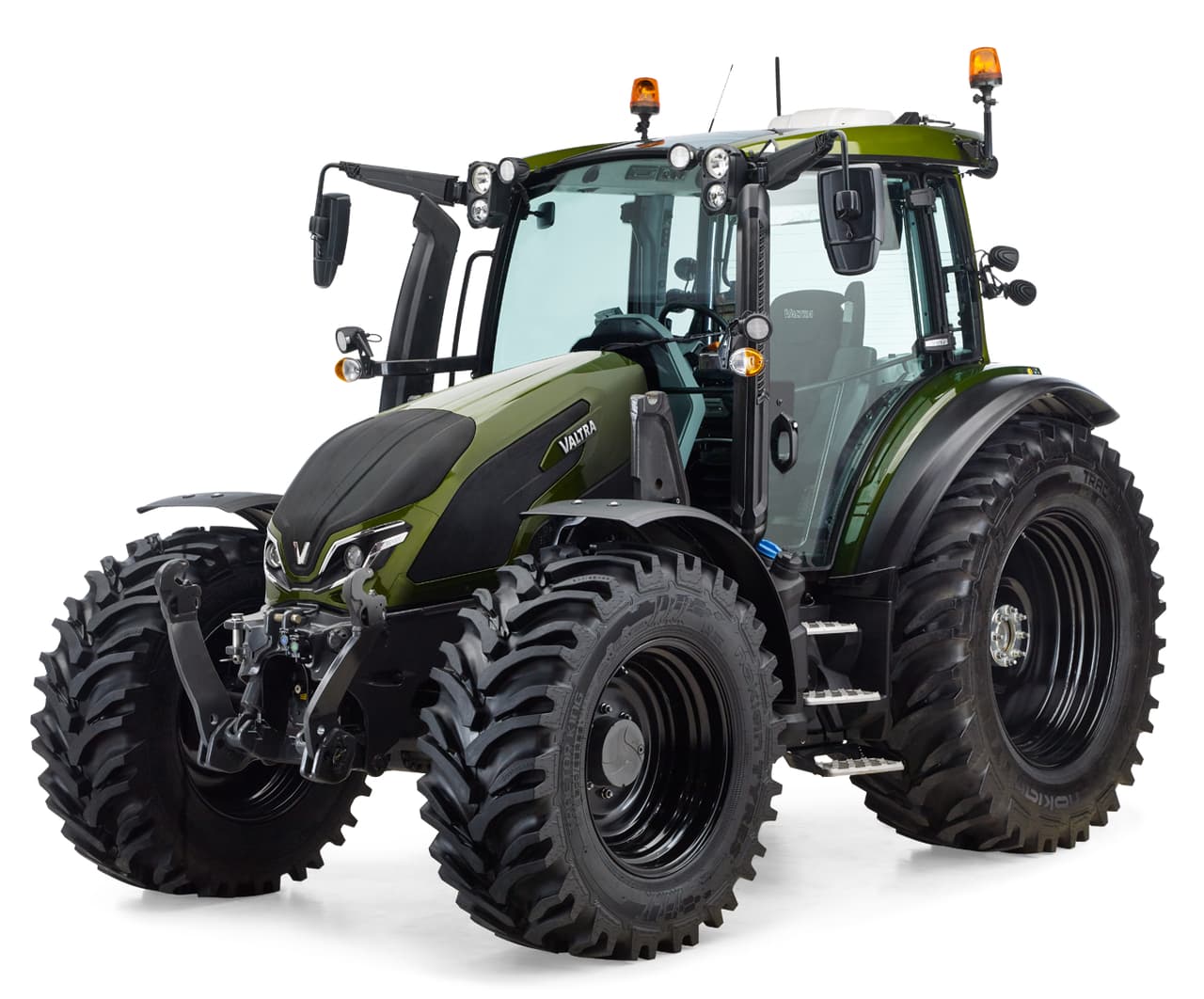

Valtra G105

Last Updated: June 2024

Overview

The Valtra G105 is a versatile utility tractor suitable for various agricultural tasks. It features a 105 horsepower AGCO Power 4-cylinder turbocharged intercooled diesel engine, with a 4.4 L capacity and a bore and stroke of 4.25 x 4.72 inches. Operated at a maximum rated RPM of 2200, it provides ample power for heavy-duty operations. The tractor comes with a 24-speed six-speed power shift transmission and is equipped with a mechanical front-wheel-drive chassis, offering good traction across different types of terrain. The steering is power-assisted for easier maneuverability. It has large tires with the front measuring 340/85R24 and the rear 420/85R34, suitable for agricultural applications. With a wheelbase of 100.4 inches and an operating weight of 11332 lbs, the G105 balances size and functionality. This model is also designed with a comfortable cab, electric starter, and open center hydraulics, though specific information on the PTO and brakes is not provided. Its sizable dimensions (length: 175.3 inches, width: 93.7 inches, and height: 110.4 inches) and a rear hitch capable of supporting a Category 3 implements round out its key features.
Show more...

Key Specifications

Category: Utility

Power Output: 105

Transmission: Six-speed power shift

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 11332

Fuel Type: Diesel

Valtra G105 vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Operating Weight
Average
Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
44 MBTN-D5
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
105

Transmission

Type
Six-speed power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
175.3
Width (in)
93.7
Height (in)
110.4
Operating Weight (lb)
11332

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
34.4 (calculated from 340/85R24)
Front Tire Width (in)
-
Rear Tire Diameter (in)
42 (calculated from 420/85R34)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
24 / 34 (inferred from tire codes)
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
