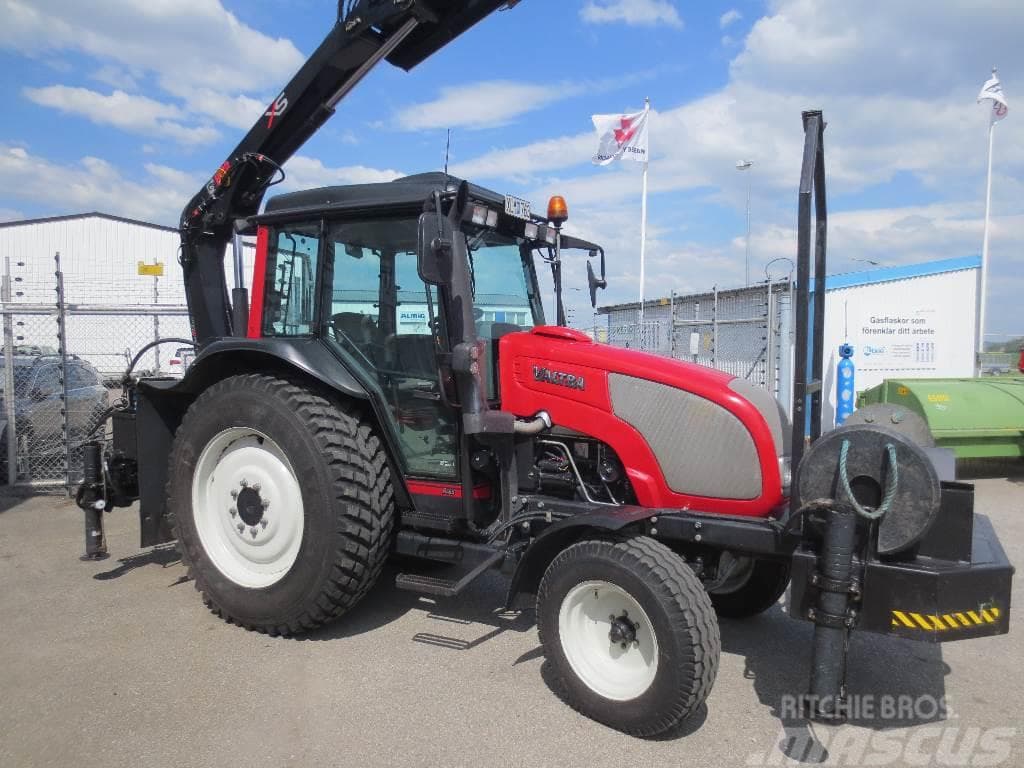

Valtra A85

Last Updated: June 2024

Overview

The Valtra A85 is a utility tractor that is engineered to offer flexibility and durability. With a 12-speed two-speed power shift transmission, it provides the versatility needed for a variety of tasks. The tractor's chassis and drive type specifications are unspecified, but it comes equipped with hydrostatic power steering, aiding in easier maneuverability. The AGCO Power 33 AWFC engine, which is liquid-cooled and uses a turbocharged diesel fuel system, displaces 201.4 cubic inches, translating to powerful torque and efficiency. Its engine churns out 88 horsepower and operates at a rated RPM of 2270. The tractor's exact size in terms of length is given as 159.1 inches and it stands 104.7 inches tall. The weight of the 2WD version is documented at 7188.3 pounds. Tire dimensions and type for agricultural use are ascertained, with front tire dimensions provided as 10.00-16 and rear dimensions as 16.9R30. Additional details such as the specific bore and stroke measurements are also provided. However, some features, including total gear numbers, cooling capacity, hitch lift capacity, PTO speeds, brake system, hydraulic system type, and operator station, remain undocumented, requiring validation for completion of the specifications.
Show more...

Key Specifications

Category: Utility

Power Output: 88

Transmission: Two-speed power shift

Operating Weight: 7188.3

Fuel Type: Diesel

Valtra A85 vs. Similar Tractors

Power Output
Above Average
Greater than 75% of similar tractors.
Operating Weight
Average
Greater than 53% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
33 AWFC
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
-
Displacement (ci)
201.4
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2270
Power Output (hp)
88

Transmission

Type
Two-speed power shift
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
159.1
Width (in)
-
Height (in)
104.7
Operating Weight (lb)
7188.3

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
