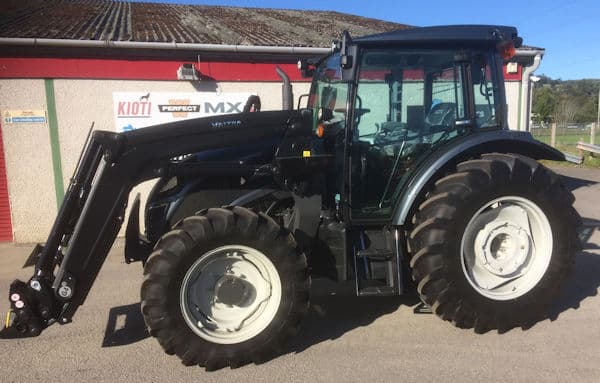

Valtra A104

Last Updated: June 2024

Overview

The Valtra A104 is a utility tractor equipped with a 4-wheel drive chassis that provides stability and traction across various terrains. Its power steering and turbocharged 4-cylinder AGCO Power engine deliver outstanding maneuverability and performance. The engine offers up to 100 horsepower and a commendable torque output of 302 lb-ft at 1500 rpm. The operator's station features a cab for comfort and protection in all weather conditions. The tractor is designed with a power shuttle transmission featuring 16 forward and reverse speeds capable of handling a variety of tasks. It has a significant lifting capacity from its rear hitch, rated to lift up to 18,739 pounds. This makes it suitable for several heavy-duty operations on the farm. A liquid-cooling system maintains the engine's optimal temperature during prolonged use. Unfortunately, without information regarding wheel dimensions and the type of tires used, one should consult the manufacturer's details or inspect the tractor directly for specific tire requirements and aftermarket sizes suitable for their specific usage.
Show more...

Key Specifications

Category: Utility

Power Output: 100

Transmission: Power shuttle

Drive Type: 4WD

Operating Weight: 8818

Fuel Type: Diesel

Valtra A104 vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Hitch Capacity
Excellent
Greater than 91% of similar tractors.
Operating Weight
Average
Greater than 59% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
44 AWFC
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
1500
Power Output (hp)
100

Transmission

Type
Power shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
171.5
Width (in)
-
Height (in)
106.8
Operating Weight (lb)
8818

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
18739
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
