Valtra 3400

Last Updated: June 2024

Overview

The Valtra 3400 is a compact utility tractor known for its versatility and ability to perform a variety of tasks. It features a powerful Deutz F4L912 engine rated at 69 horsepower and a 4-cylinder air-cooled design, suitable for various agricultural operations. The 4-wheel drive (4WD) capability along with power steering and a 24-speed partially synchronized transmission enhance maneuverability and control. The tractor's wheelbase measures 82.5 inches, which contributes to its balance and stability during operation. Its engine is tuned to deliver a max torque of 169.6 lb-ft at 1600 RPM, which provides sufficient pulling power for its category. With different tire options, the 3400 can adapt to general field work, as well as specialized orchard duties. The tractor specifications indicate a robust machine capable of handling a range of tasks with efficacy.

Key Specifications

Category: Utility

Power Output: 69

Transmission: Partially synchronized

Drive Type: 4WD

Operating Weight: 5611 (ROPS), 6096 (cab)

Fuel Type: Diesel

Image Gallery

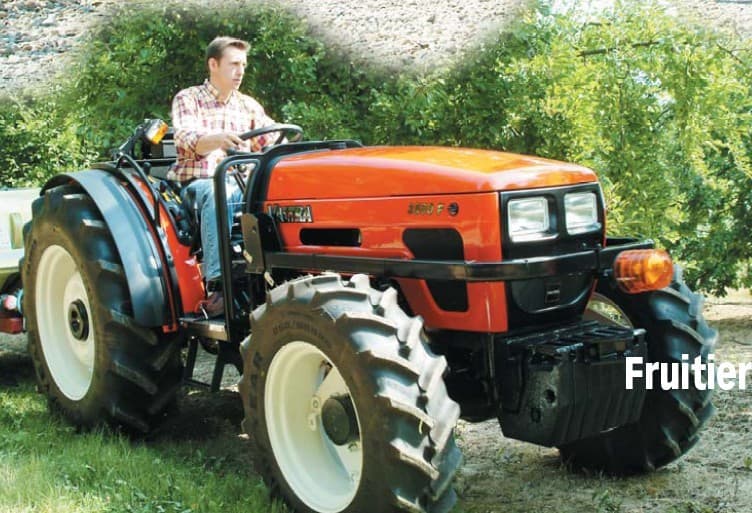

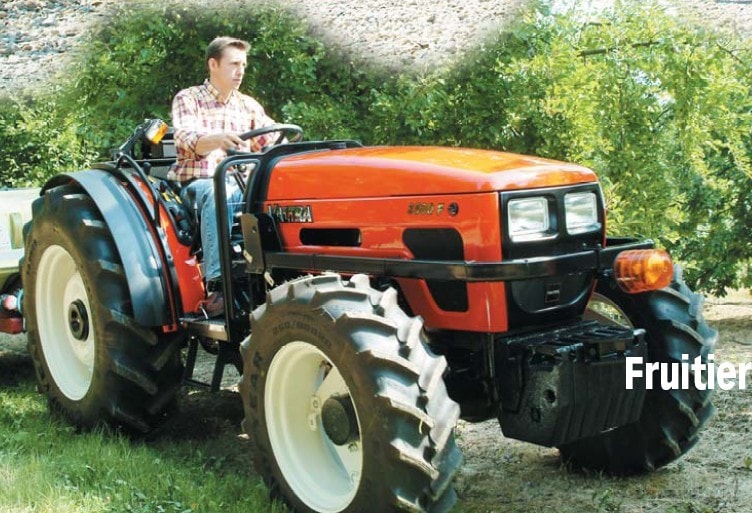

Valtra 3400 Tractor

Valtra 3400 vs. Similar Tractors

Power Output

Average

Greater than 63% of similar tractors.

Operating Weight

Average

Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer: Deutz
Model: F4L912
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural
Cylinders: 4
Displacement (ci): 230.1
Bore (in): 3.937
Stroke (in): 4.724
Rated RPM: 2300
Power Output (hp): 69

Transmission

Type: Partially synchronized
Forward Gears: -
Reverse Gears: -
Total Gears: 24

Dimensions

Length (in): 151.2
Width (in): 66.9
Height (in): 101.4 (ROPS), 94.1 (cab)
Operating Weight (lb): 5611 (ROPS), 6096 (cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
