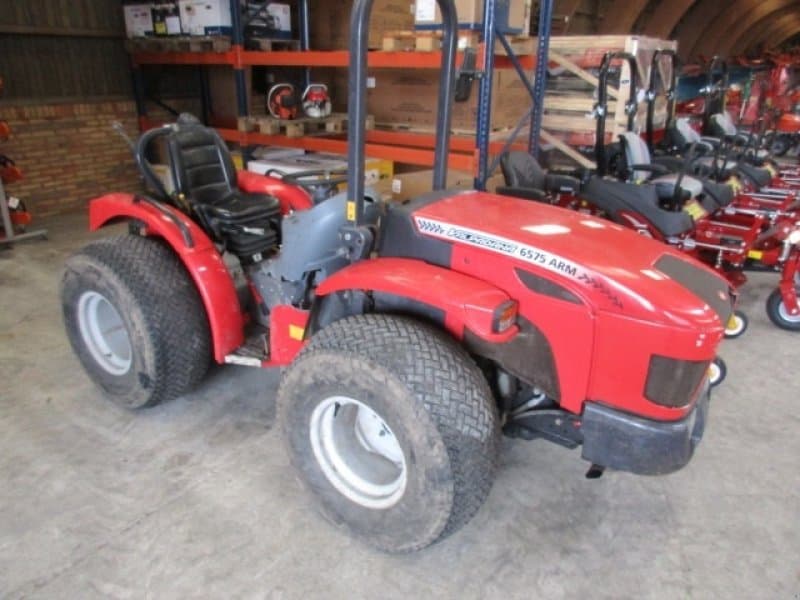

Valpadana 6575

Last Updated: June 2024

Overview

The Valpadana 6575 is a utility-class 4-wheel drive tractor, built to handle a variety of tasks with efficiency and power. It offers a 4x4 MFWD 4WD chassis for improved traction and performance in diverse field conditions. Equipped with a shuttle/creeper 16-speed transmission and a power steering system, this tractor emphasizes maneuverability and control. The heart of the 6575 is a turbocharged 4-cylinder 8-valve diesel engine provided by John Deere, model 4024 TF 270, which delivers 66 horsepower and 163 lb-ft of torque at a rated 2800 RPM. With a liquid cooling system to maintain optimal engine temperatures, this tractor can work long hours without overheating. The tractor's 55-inch wheelbase contributes to its stability, and its compact dimensions with a length of 129.5 inches and a width of 49.8 inches allow for ease of operation in tight spaces. Weighing in at 4,012 lbs, it has substantial heft to provide the necessary traction and performance in the field. This model features Category I rear hitch type and ag tires, enhancing its utility in various agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 66

Transmission: Shuttle/Creeper

Drive Type: 4WD

Operating Weight: 4012

Fuel Type: Diesel

Valpadana 6575 vs. Similar Tractors

Power Output
Average
Greater than 62% of similar tractors.
Operating Weight
Average
Greater than 36% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
4024 TF 270
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
8-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
148.9
Bore (in)
-
Stroke (in)
-
Rated RPM
2800
Power Output (hp)
66

Transmission

Type
Shuttle/Creeper
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
129.5
Width (in)
49.8
Height (in)
55.9
Operating Weight (lb)
4012

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
