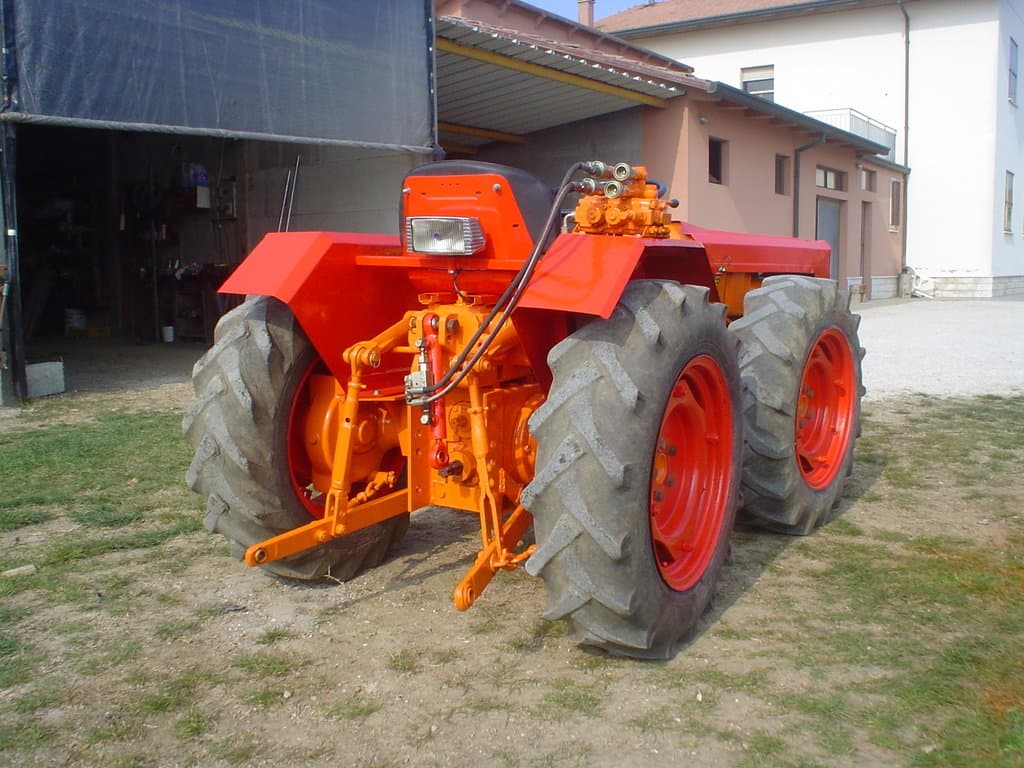

Valpadana 1015

Last Updated: June 2024

Overview

The Valpadana 1015 is a compact tractor designed for various agricultural and landscaping tasks. It features a mechanical rack steering system and a modest 11.2 horsepower diesel engine (engine model L100). This engine is a 2-cylinder, air-cooled model with a displacement of 24.78 cubic inches. It utilizes a hydrostatic transmission, allowing for an infinite range of forward and reverse gears, providing versatility and easy operation for various tasks. The tractor's compact dimensions, with a length of 43 inches, width of 30 inches, and height of 41 inches, and a weight of 690 lbs, make it suitable for navigating in tight spaces while maintaining adequate ground clearance of 7.1 inches. It is equipped with 12-volt electric starting system, and wheelbase stands at 42.9 inches. However, details regarding other technical specifications, such as PTO speeds, hydraulic system type or tire sizes remain unclear. The tractor can be fitted with different types of tires, indicating adaptability for different soil conditions or lawn care tasks.
Show more...

Key Specifications

Power Output: 11.2

Transmission: Hydrostatic

Operating Weight: 690

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Unknown
Model
L100
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
24.78
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
11.2

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
43
Width (in)
30
Height (in)
41
Operating Weight (lb)
690

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Mechanical rack
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (Ag); Lawn/turf
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
-
