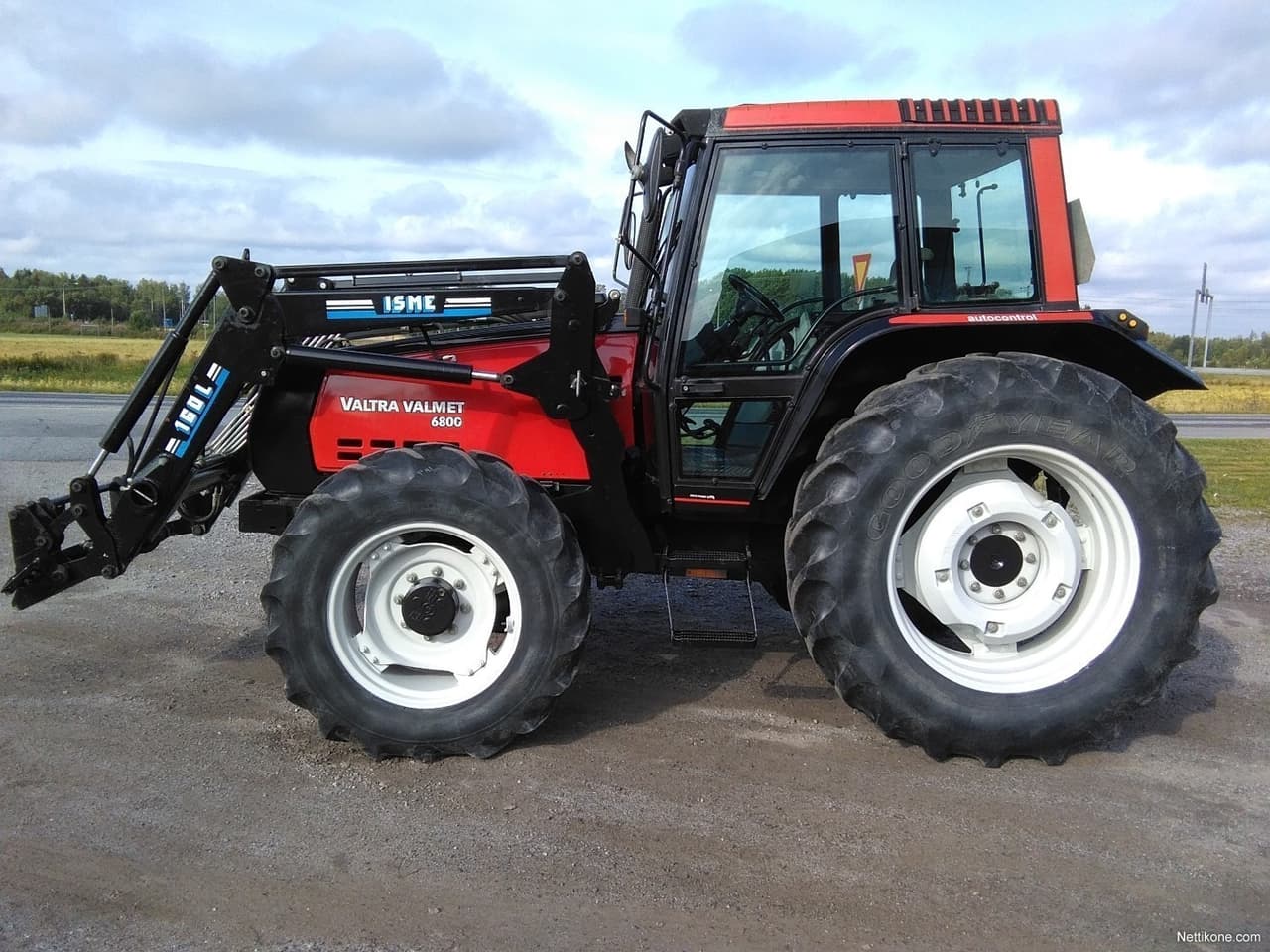

Valmet 6800

Last Updated: June 2024

Overview

The Valmet 6800 is a powerful row-crop tractor designed for a variety of agricultural tasks. Equipped with a 4WD (4x4 MFWD 4WD) chassis, it provides good traction on rough terrain. It features a turbocharged Saran SisuDiesel 420 DWI engine, producing 114 horsepower with a displacement of 268.4 cubic inches. The liquid-cooled engine ensures stable working temperature during long work hours. Moreover, the power is delivered through a responsive three-speed power shift transmission with a total of 36 gears for both forward and reverse motion. Its efficient steering system, combined with a convenient power steering mechanism, enhances maneuverability. While the specifics of the hydraulic system are not detailed, it is built to support the rear hitch categories III/II. The tractor's sizable footprint, featuring a wheelbase of 91.6 inches and weighing 9722 lbs, suggests a stable and robust structure suitable for handling demanding tasks. The dimensions and weight underscore its overall durability and reliability.
Show more...

Key Specifications

Category: Row Crop

Power Output: 114

Transmission: Three-speed power shift

Drive Type: 4WD

Operating Weight: 9722

Fuel Type: Turbocharged diesel

Valmet 6800 vs. Similar Tractors

Power Output
Average
Greater than 31% of similar tractors.
Operating Weight
Average
Greater than 33% of similar tractors.

Technical Specifications

Engine

Manufacturer
SisuDiesel
Model
420 DWI
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbocharged diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
268.4
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2225
Power Output (hp)
114

Transmission

Type
Three-speed power shift
Forward Gears
36
Reverse Gears
36
Total Gears
-

Dimensions

Length (in)
174.2
Width (in)
85.8
Height (in)
109.1
Operating Weight (lb)
9722

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
III/II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
