Valmet 1502

Last Updated: June 2024

Overview

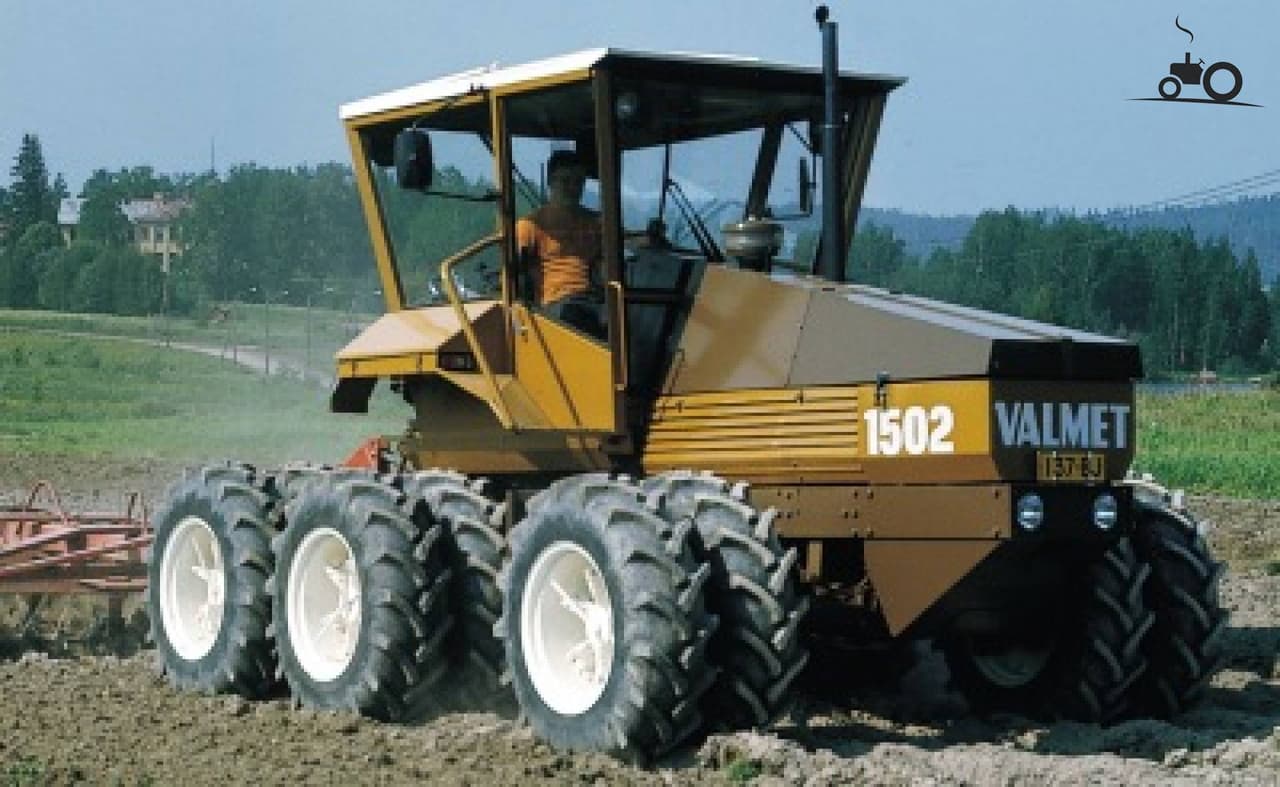

The Valmet 1502 is a diesel-powered tractor with a turbocharged engine. It is notably a four-wheel drive (4WD) model that still presents a chassis configuration of 4x2 2WD. This tractor comes equipped with a 16-speed transmission, offering 16 forward and 4 reverse gears, and has a power steering system. The Valmet 611 CS engine in the 1502 model is a liquid-cooled, 6-cylinder engine with a displacement of 405 cubic inches, capable of producing 136 horsepower at 2300 RPM and 405 lb-ft of torque at 1650 RPM. The tractor's wheelbase is substantial, measuring 99.21 inches, and its total length and height are 209.8 inches and 117.7 inches, respectively. This model has considerable weight, ranging from 15210 to 16470 pounds, which gives it stability and durability for various tasks. Tire sizes are consistent for both the front and rear, indicating the use of 18-22.5-sized tires.
Show more...

Key Specifications

Power Output: 136

Drive Type: 4WD

Operating Weight: 16470

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Valmet
Model
611 CS
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
405
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2300
Power Output (hp)
136

Transmission

Type
-
Forward Gears
16
Reverse Gears
4
Total Gears
20

Dimensions

Length (in)
209.8
Width (in)
-
Height (in)
117.7
Operating Weight (lb)
16470

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
