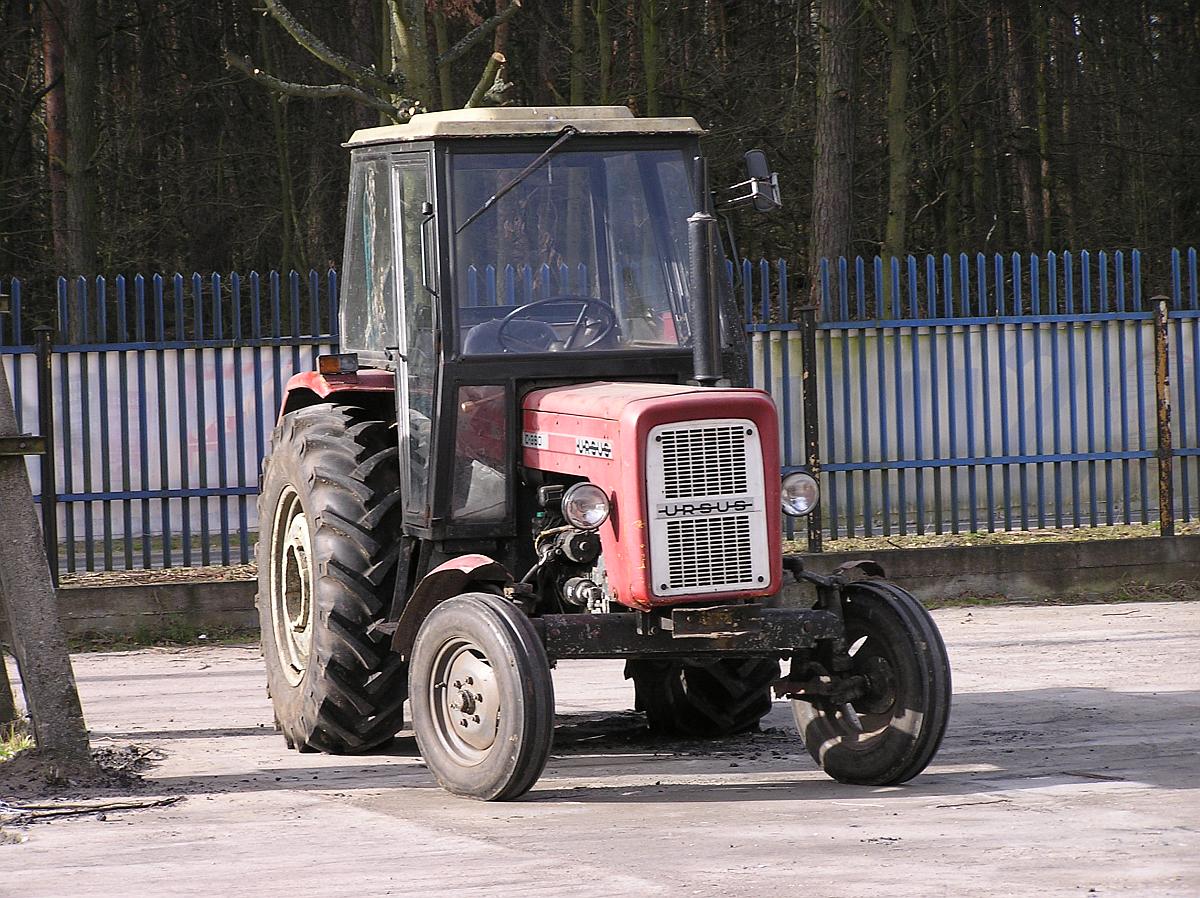

Ursus C-360

Last Updated: June 2024

Overview

The Ursus C-360 is a utility tractor known for its simplicity and ruggedness. With a 52 horsepower 4-cylinder liquid-cooled S-4003 engine, it provides ample power for a range of tasks. Its 190.4 cubic inch engine operates at a rated speed of 2200 RPM and achieves a torque of 140 lb-ft at 1500 RPM. With a 4x2 2WD chassis configuration and manual steering, this tractor is well-suited to varied agricultural needs. It offers a 10-speed transmission with 10 forward and 2 reverse gears and operates on standard agricultural tires, with front dimensions of 6.00-16 and rear dimensions of 14.9-28. It supports a rear hitch type II system, which is common for tractors of this category. The electric starter ensures reliable ignition, while its dimensions provide a compact yet effective solution for small to medium farm operations. Overall, the Ursus C-360 is built as an efficient and dependable machine, known for its ease of maintenance and versatility in multiple agricultural settings.
Show more...

Key Specifications

Category: Utility

Power Output: 52

Drive Type: 2WD

Operating Weight: Shipping weight: 4784 | Ballasted weight: 6614

Ursus C-360 vs. Similar Tractors

Power Output
Average
Greater than 50% of similar tractors.
Operating Weight
Above Average
Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ursus
Model
S-4003
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
4
Displacement (ci)
190.4
Bore (in)
3.74
Stroke (in)
4.33
Rated RPM
2200
Power Output (hp)
52

Transmission

Type
-
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
140.6
Width (in)
70.9
Height (in)
Height with steering wheel: 63.8 | Height with cab: 87.8 | Height with exhaust: 80.7
Operating Weight (lb)
Shipping weight: 4784 | Ballasted weight: 6614

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
11.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Rear Type II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
