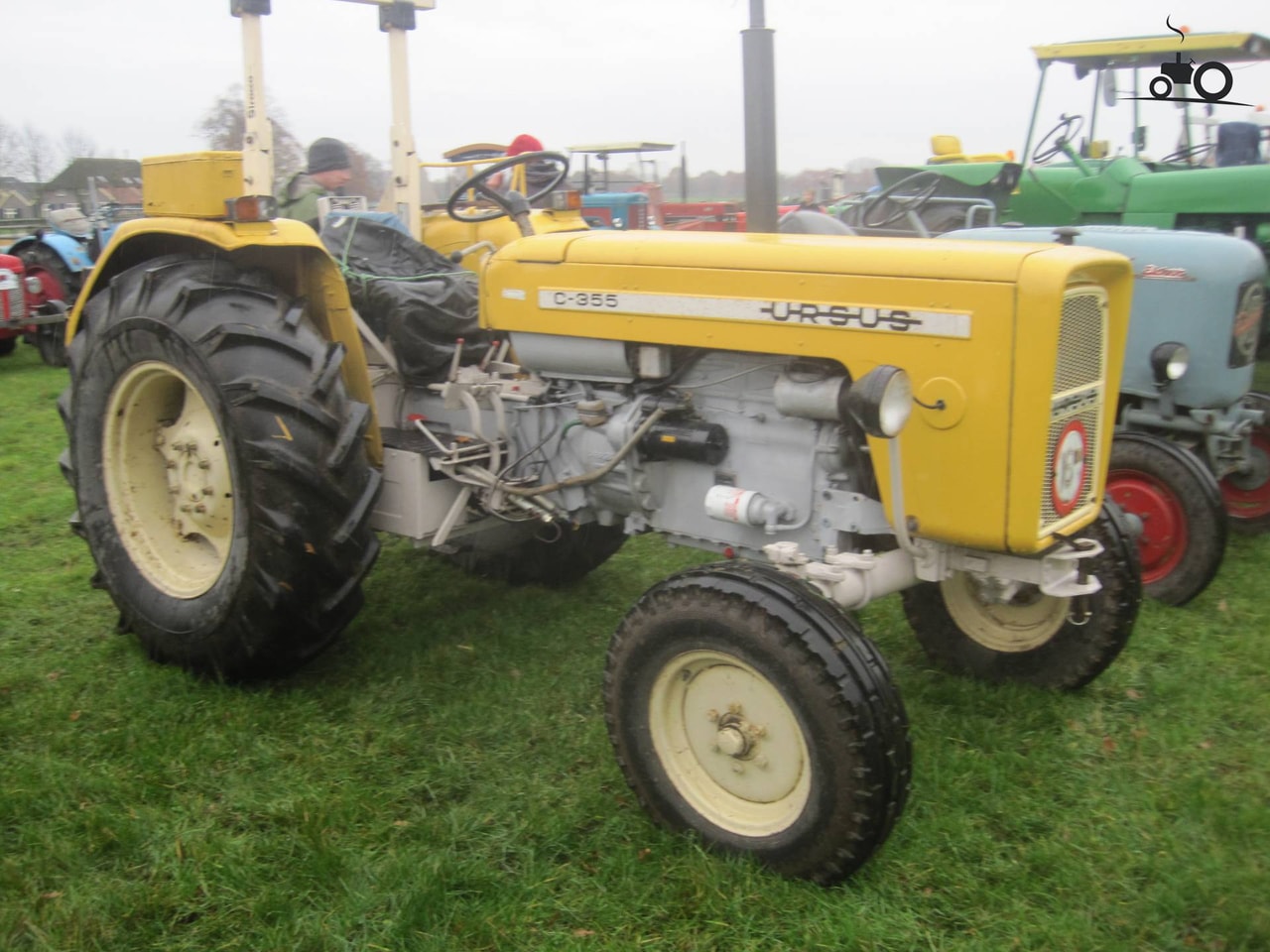

Ursus C-355

Last Updated: June 2024

Overview

The Ursus C-355 is a utility tractor that was designed for various agricultural tasks. It is powered by a 55 horsepower Ursus S-4002 diesel engine which is liquid-cooled, ensuring efficiency and durability even under heavy loads. The engine's displacement is 190.4 cubic inches, and it rates at 2000 RPM, with a bore and stroke of 3.74 inches by 4.33 inches. With a 10-speed gear transmission, the C-355 provides flexibility with 10 forward gears and 2 reverse, allowing the operator to select optimal speeds for a wide range of tasks. Steering is manual, fitting for the tractor's utilitarian purpose. The 4x2 2WD chassis contributes to the tractor's maneuverability in various conditions. The Ursus C-355 has a wheelbase of 83.7 inches, a length of 140.6 inches, a width of 70.9 inches, and a height of 80.7 inches, with an approximate operating weight of 4410 lbs. This model's dimensions ensure stability during operation, complemented by the adequate ground clearance of 17.3 inches.
Show more...

Key Specifications

Category: Utility

Power Output: 55

Transmission: Gear

Drive Type: 2WD

Operating Weight: 4410

Fuel Type: Diesel

Ursus C-355 vs. Similar Tractors

Power Output
Average
Greater than 53% of similar tractors.
Operating Weight
Average
Greater than 40% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ursus
Model
S-4002
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
190.4
Bore (in)
3.74
Stroke (in)
4.33
Rated RPM
2000
Power Output (hp)
55

Transmission

Type
Gear
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
140.6
Width (in)
70.9
Height (in)
80.7
Operating Weight (lb)
4410

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
11.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
