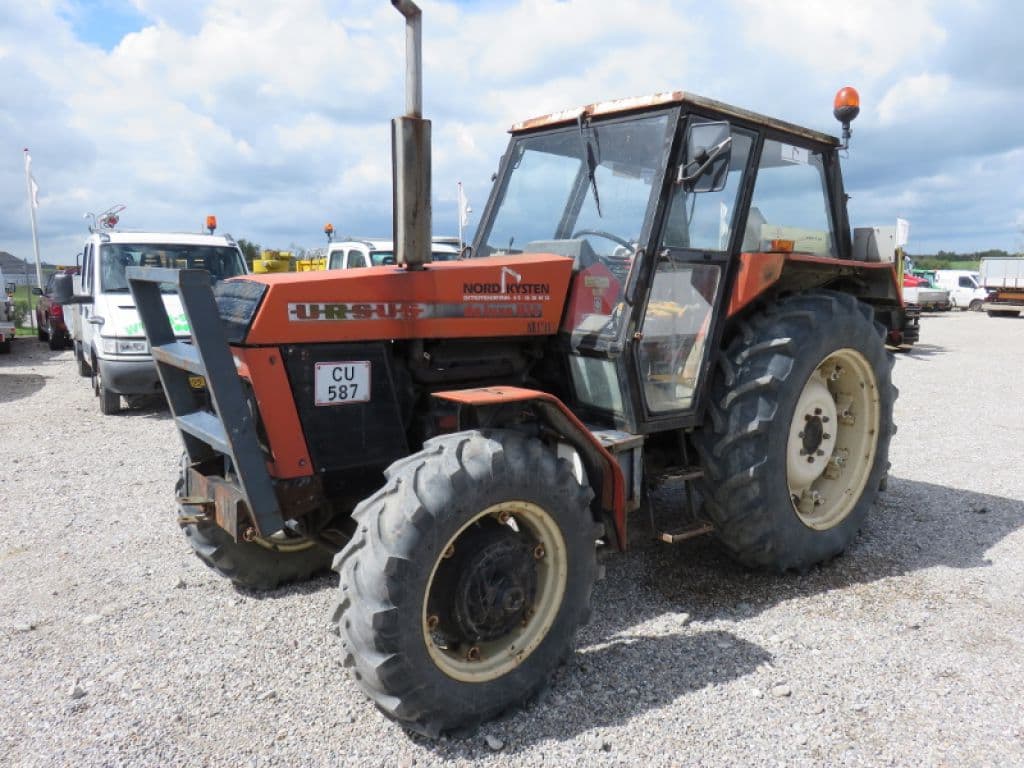

Ursus 914

Last Updated: June 2024

Overview

The Ursus 914 tractor is a utility tractor, equipped with a robust four-wheel drive (4WD) system. Manufactured by Ursus, and featuring an engine made by Zetor, this tractor is designed for a variety of tasks in the fields and on the farm. It boasts a powerful Zetor 4.6L 4-cylinder diesel engine with a displacement of 278.4 cubic inches and a direct injection system. The engine is capable of delivering 100 horsepower and an impressive torque of 320 lb-ft at 1650 RPM, making it well-suited for heavy-duty operations. The tractor operates with a two-speed power shift transmission providing 16 forward gears and 8 reverse gears, facilitating efficient management of speed for different tasks. Steering with this model is power-assisted, enhancing the ease of maneuverability even under challenging conditions. The Ursus 914 features a dry weight of 9744 pounds, which can be ballasted to 11244 pounds for additional stability and traction. With a wheelbase of 93.9 inches and a height with cab of 103.2 inches, this tractor maintains a sturdy and commanding presence. The tractor is outfitted with agricultural tires, with front and rear sizes of 12.4-24 and 18.4-34 inches respectively. Operator comfort is addressed with a cab station type for protection against environmental factors and it is supported by an electric starter system for quick and reliable engine ignition. Even though specific information on the tractor's PTO, hydraulic system, and brakes remains unknown, the Ursus 914 attests to a solid and effective tractor for a variety of agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 100

Transmission: Two-speed power shift

Drive Type: 4WD

Operating Weight: 9744

Fuel Type: Diesel

Ursus 914 vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
4.6L 4-cyl diesel
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
278.4
Bore (in)
4.33
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
100

Transmission

Type
Two-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
163.8
Width (in)
77.6
Height (in)
103.2 (height for cab)
Operating Weight (lb)
9744

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
24.3
Front Tire Diameter (in)
24
Front Tire Width (in)
12.4
Rear Tire Diameter (in)
34
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
