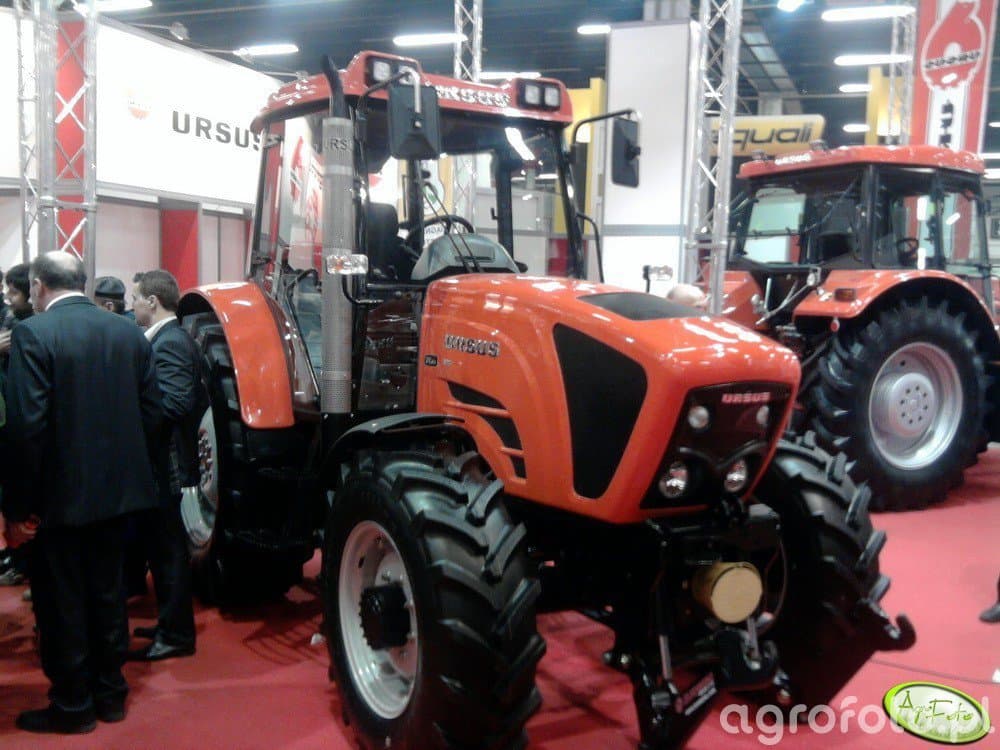

Ursus 8024 Mido

Last Updated: June 2024

Overview

The Ursus 8024 Mido is a robust tractor equipped with a 4x4 MFWD 4WD chassis, indicating its suitability for a variety of terrains and demanding agricultural tasks. Its heart lies in the Perkins 1104D-44TA engine which is a turbocharged, aftercooled, liquid-cooled diesel unit featuring 4 cylinders and a displacement of 268.4 cubic inches. The tractor delivers a commendable power output of 108.6 horsepower at a rated RPM of 1400, ensuring strong performance across various working conditions. Power steering aids in easier maneuverability, while the 12 forward and 4 reverse speed transmission provides versatility in operation. With a significant operating weight of 9039 lbs and dimensions that highlight its substantial size (157.5 inches in length, 86.6 inches in width, and 108.3 inches in height), the 8024 Mido is built to handle sizable tasks on the farm or work site.
Show more...

Key Specifications

Power Output: 108.6

Drive Type: 4WD

Operating Weight: 9039

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44TA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
4
Displacement (ci)
268.4
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
1400
Power Output (hp)
108.6

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
157.5
Width (in)
86.6
Height (in)
108.3
Operating Weight (lb)
9039

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
