Ursus 5314

Last Updated: June 2024

Overview

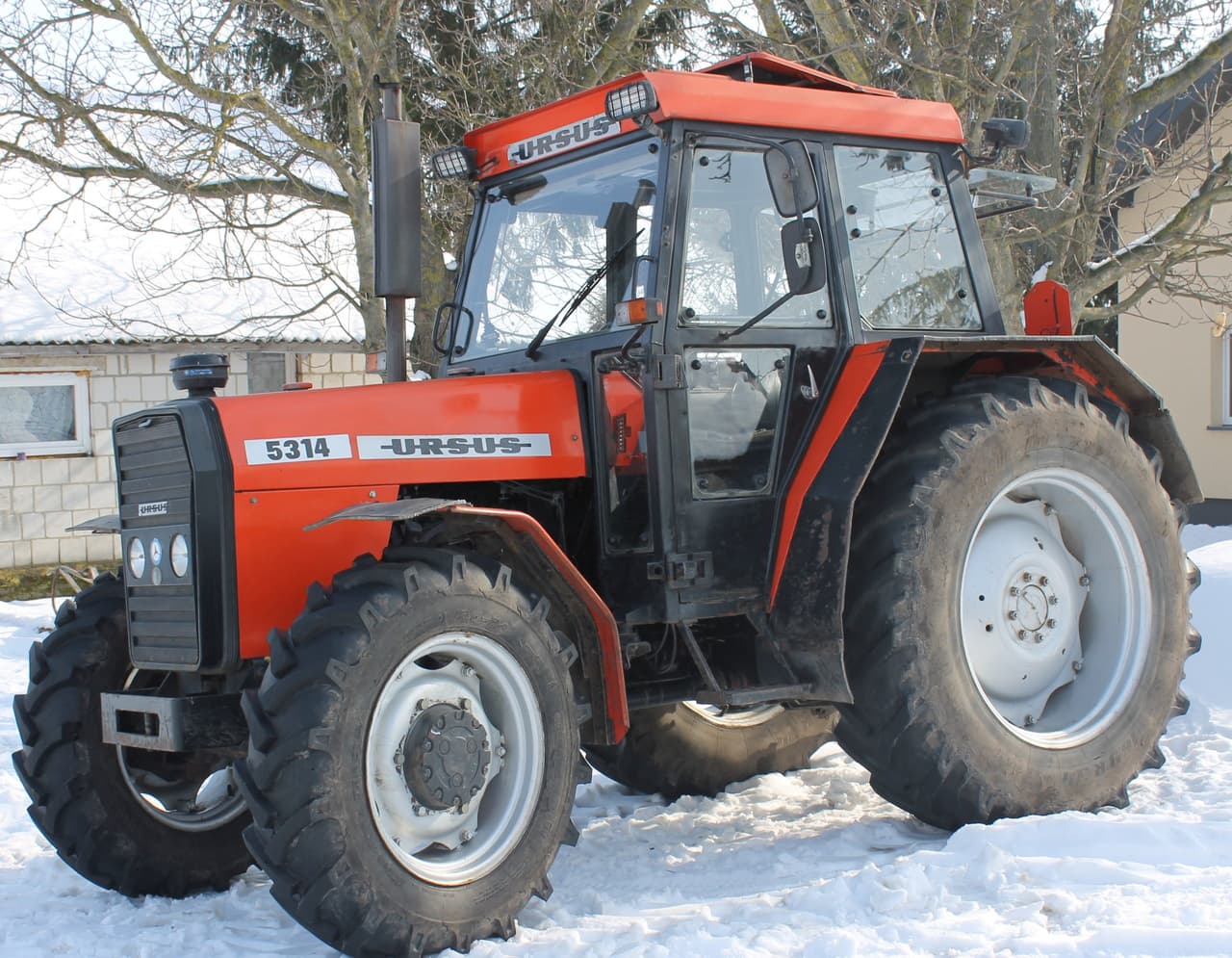

The Ursus 5314 is a utility tractor equipped for a variety of tasks. It comes with a 4WD chassis and a manual transmission with 16 forward and 8 reverse gears. This tractor is powered by a 70 hp Ursus 4390 diesel engine with a displacement of 235.9 cubic inches, operating at a rated RPM of 2200 to deliver a strong performance in different working conditions. It has a liquid cooling system with a capacity of 15.9 quarts, ensuring that the engine maintains an optimal temperature during operation. The tractor's power steering system enhances maneuverability, making it easier to handle even in tight spaces. The tractor is set on standard agricultural tires, providing the necessary traction for various farming activities. With a length of 148 inches, a width of 79.1 inches, and an operating weight of 7717 lbs, the Ursus 5314 is built to be both robust and reliable. It also features a Category II rear three-point hitch, although the lift capacity is not specified. The electric starter ensures easy startup, but details regarding the PTO, brakes, and hydraulic system are not provided. The Ursus 5314 is designed to serve farmers who need a dependable machine for their day-to-day operations.
Show more...

Key Specifications

Category: Utility

Power Output: 70

Transmission: Manual

Drive Type: 4WD

Operating Weight: 7717

Fuel Type: Diesel

Ursus 5314 vs. Similar Tractors

Power Output
Average
Greater than 64% of similar tractors.
Operating Weight
Average
Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ursus
Model
4390 (assumed from Engine - Engine Detail; however, CEG_Engine Model lists 4410, conflicting data ignored due to lack of clarity)
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
235.9
Bore (in)
3.87
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
70

Transmission

Type
Manual
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
148
Width (in)
79.1
Height (in)
Unknown (Two different heights provided, for the cab and the exhaust)
Operating Weight (lb)
7717

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
15.9
Front Tire Diameter (in)
12.4 (assumed from standard tire notation "12.4-24", which usually denotes tire diameter)
Front Tire Width (in)
Unknown (The width is not typically separated from the tractor tire size designation)
Rear Tire Diameter (in)
Unknown (Assumed to be 16.9 from "16.9R34" but without specific indication, marking as Unknown)
Rear Tire Width (in)
Unknown (The width is not typically separated from the tractor tire size designation)
Front/Rear Rim Diameter (in)
Unknown (Standard tire sizes provided; rim diameter not explicitly stated)
Tire Type
Ag (agricultural)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (assumed from Rear Type: II, which usually indicates a Category 2 three-point hitch system)
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
