Ursus 4514

Last Updated: June 2024

Overview

The Ursus 4514 is a 4-wheel drive tractor that comes equipped with the Ursus 4390 and 4410 engines, assumed to be reference to the same engine with minor variations or discrepancies in the provided data. It features a 4-cylinder, liquid-cooled diesel engine with a displacement of 235.9 cubic inches. This tractor operates at a rated RPM of 2000, with a gross power output of approximately 68.7 horsepower. With an 8-speed transmission complemented by a creeper option providing additional gear ranges, the 4514 offers flexibility for various farming tasks. Designed with a power steering system for easier maneuverability, this model also has both ROPS and cab configuration options for operator safety and comfort. The tractor's wheelbase stands at 90.6 inches, working alongside a weight range of 6107 to 7275 pounds, making it suitable for a variety of agricultural purposes.

Key Specifications

Power Output: 66 (rated), 68.7 (gross)

Transmission: Gear with Creeper Option

Drive Type: 4WD

Operating Weight: 6107 (ROPS), 7275 (Cab)

Fuel Type: Diesel

Lift Capacity: 5291.1 lbs at 24 inches

Image Gallery

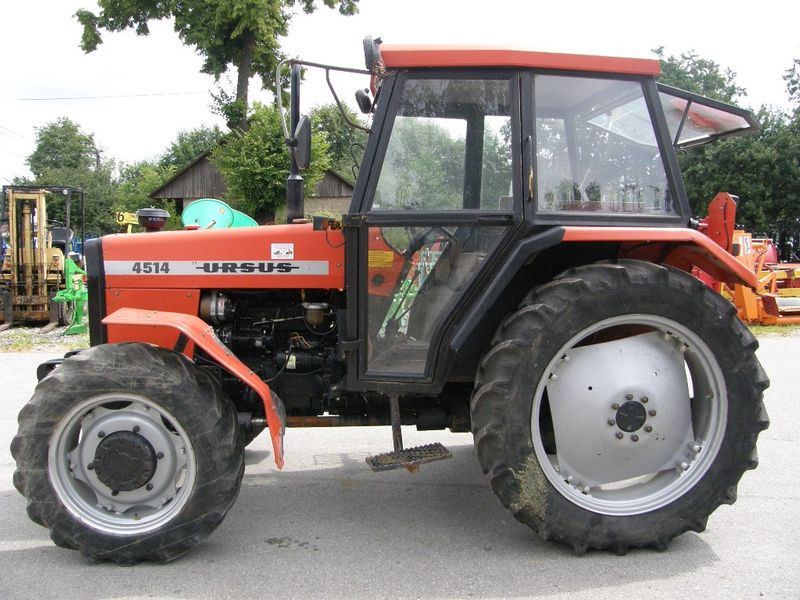

Ursus 4514 Tractor

Technical Specifications

Engine

Manufacturer: Ursus
Model: 4390, 4410 (assumed discrepancy)
Cooling Type: Liquid-cooled
Cylinder Orientation: Vertical (common assumption for diesel tractors)
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct injection
Cylinders: 4
Displacement (ci): 235.9
Bore (in): 3.87
Stroke (in): 5
Rated RPM: 2000
Power Output (hp): 66 (rated), 68.7 (gross)

Transmission

Type: Gear with Creeper Option
Forward Gears: 12
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 145.7
Width (in): 72.8
Height (in): 99.6 (cab), 101.6 (exhaust), equivalent in ft/in indicated by CEG_Height - Top of Cab
Operating Weight (lb): 6107 (ROPS), 7275 (Cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 14.7
Front Tire Diameter (in): Unknown (not enough data to deduce diameter from other measurements)
Front Tire Width (in): Unknown (measurement "11.2R24" indicates size but not specific width)
Rear Tire Diameter (in): Unknown (not enough data to deduce diameter from other measurements)
Rear Tire Width (in): Unknown (measurement "16.9R30" indicates size but not specific width)
Front/Rear Rim Diameter (in): Unknown (R24 and R30 indicate rim sizes but no specific inch measurement given)
Tire Type: Standard tires (ag)
Manufacture - End Year: -
Hitch Type: Unknown (Rear Type II implies three-point hitch but not explicitly stated)
Hitch Category: Category 2/II (contradictory Category 3 specification assumed to be error based on provided data)
Hitch Position: Rear
Hitch Capacity (lb): 5291.1 lbs at 24 inches
Operator Station Type: ROPS and Cab options
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
