Ursus 4512

Last Updated: June 2024

Overview

The Ursus 4512 is a 2WD utility tractor that was equipped with an Ursus 4390 engine. This tractor offers a simple yet robust 8-speed gear transmission and has been designed to operate efficiently with 66 horsepower at 2000 RPM. The diesel engine's reliability is further enhanced through its liquid cooling system and direct injection fuel system. An engine displacement of 235.9 cubic inches, coupled with a torque of 180.7 lb-ft at 1400 RPM, provides the necessary power for a variety of tasks. The tractor’s dimensions and weight are optimized for stability and performance, ensuring reliability across different terrains. The Ursus 4512 features power steering, a rear three-point hitch of category II with a lift capacity of over 5291.1 lbs, and comes in different configurations that may include either a ROPS or a cab setup.

Key Specifications

Power Output: 66

Transmission: Gear

Drive Type: 2WD

Operating Weight: 5401 (ROPS), 6568 (cab weight)

Fuel Type: Diesel

Lift Capacity: 5291.1 (at 24 inches)

Image Gallery

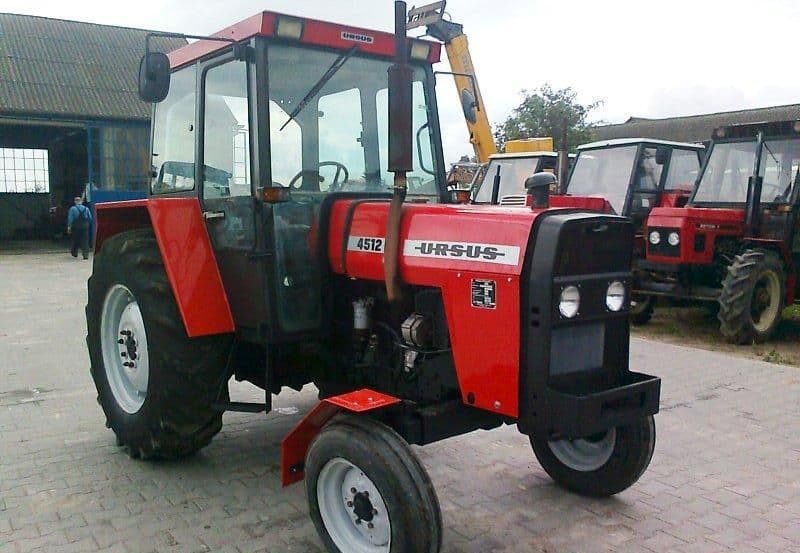

Ursus 4512 Tractor

Technical Specifications

Engine

Manufacturer: Ursus
Model: 4390
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct injection
Cylinders: 4
Displacement (ci): 235.9
Bore (in): 3.87
Stroke (in): 5
Rated RPM: 2000
Power Output (hp): 66

Transmission

Type: Gear
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 148.6
Width (in): 76
Height (in): 103 (height to exhaust)
Operating Weight (lb): 5401 (ROPS), 6568 (cab weight)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): 14.7
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (implied by "Rear Type: II")
Hitch Category: II (Category 2)
Hitch Position: Rear
Hitch Capacity (lb): 5291.1 (at 24 inches)
Operator Station Type: Unknown (Both ROPS and Cab versions are mentioned)
Starter Type: Electric Starter (implied by "Starter volts")
Brake Type: -
Hydraulic System Type: -
