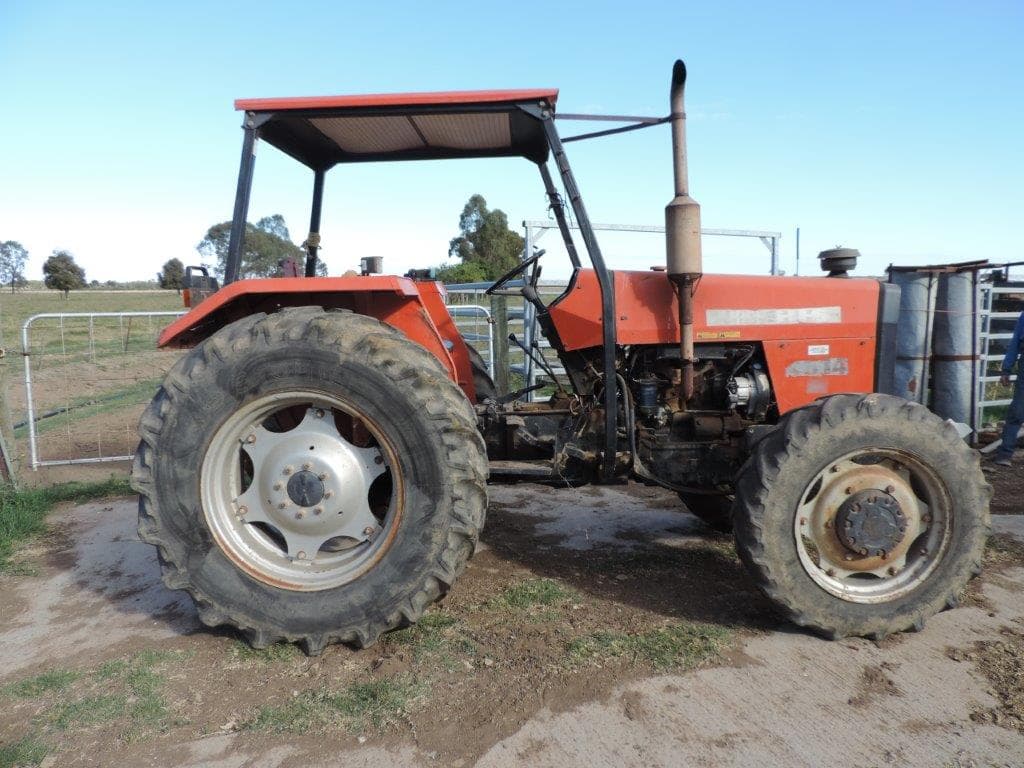

Ursus 4502

Last Updated: June 2024

Overview

The Ursus 4502 is an orchard/vineyard tractor, well-suited for operations in confined spaces due to its compact dimensions and nimble handling capabilities. It is powered by an Ursus 4390 four-cylinder diesel engine rated at 59.1 horsepower, with a displacement of 235.9 cubic inches and direct injection fuel system, capable of delivering sufficient torque at lower RPM ratings. The tractor's 4x2 2WD chassis supports tasks that do not require four-wheel drive, making it a cost-effective option for farmers. Although the Ursus 4502 has a basic power steering feature, it could improve maneuverability and handling during field operations. It is fitted with a creeper transmission with 12 forward and 4 reverse gears, providing a range of speed options to match various tasks. The cab feature offers protection from the elements to the operator. With a wheelbase of 88.8 inches and a weight of 4938 lbs without ballast, the tractor presents a stable platform for a variety of agricultural tasks.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 59.1

Transmission: Creeper

Drive Type: 2WD

Operating Weight: 4938

Fuel Type: Diesel

Ursus 4502 vs. Similar Tractors

Power Output
Average
Greater than 31% of similar tractors.
Operating Weight
Below Average
Greater than 28% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ursus
Model
4390
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
235.9
Bore (in)
3.87
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
59.1

Transmission

Type
Creeper
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
148
Width (in)
56.1
Height (in)
99 (cab)
Operating Weight (lb)
4938

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
14.7
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
