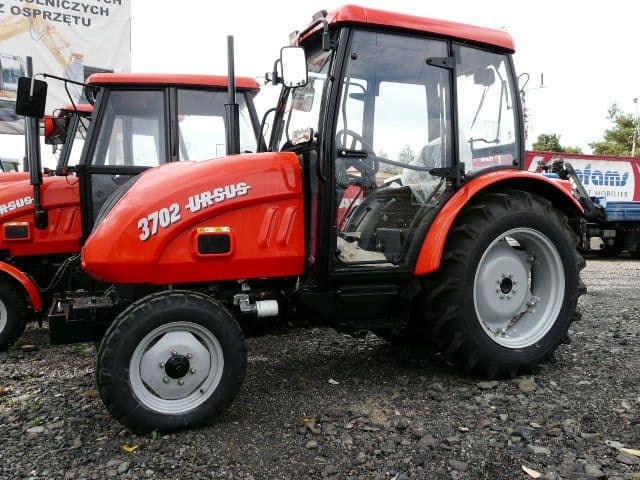

Ursus 3702 Piko

Last Updated: June 2024

Overview

The Ursus 3702 Piko is a utility tractor equipped with a 2WD chassis and is powered by a Perkins 1103D-33 three-cylinder diesel engine. It has a manual transmission with 8 forward and 2 reverse gears providing a versatile range of speeds suitable for a variety of tasks. This tractor features power steering, a liquid cooling system, and a dry disc clutch. With a rated engine output of 49.5 horsepower and a torque of 144.6 lb-ft at 1400 RPM, the 3702 Piko stands as an efficient choice for farm operations. It has standard front tires of 6.00-16 and rear tires of 12.4-28, supporting its operational weight of 5115 lbs. The tractor's size and weight dimensions denote its capacity to perform well in a wide range of agricultural tasks while retaining a compact footprint.
Show more...

Key Specifications

Power Output: 49.5

Transmission: Manual

Drive Type: 2WD

Operating Weight: 5115

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
1103D-33
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
201.4
Bore (in)
4.134
Stroke (in)
5
Rated RPM
1400
Power Output (hp)
49.5

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
129.9
Width (in)
52.4
Height (in)
89.8
Operating Weight (lb)
5115

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
