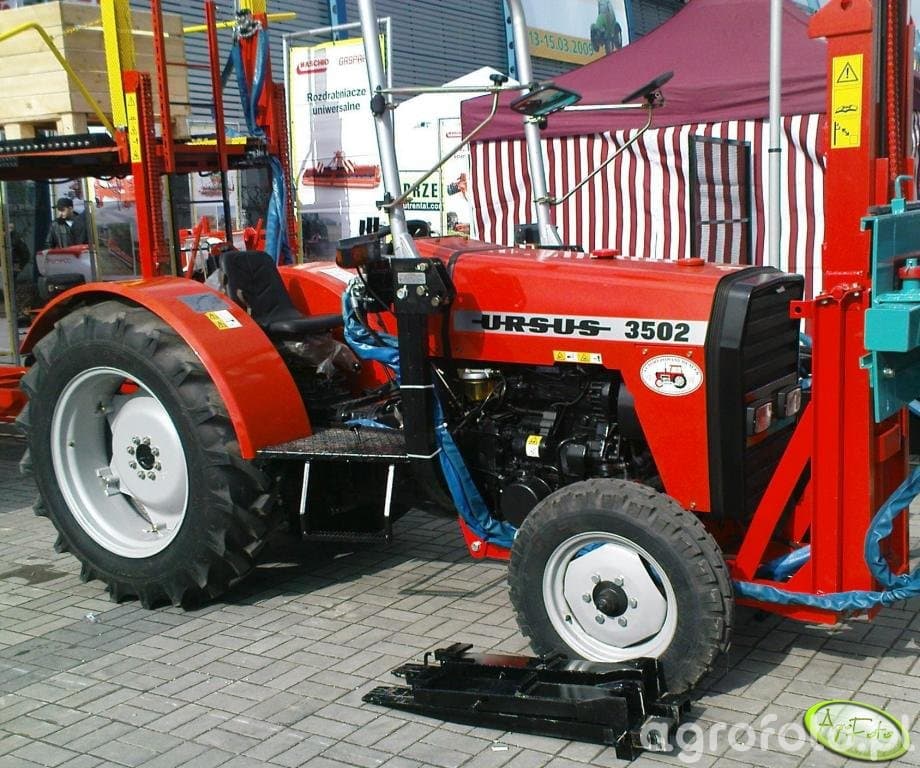

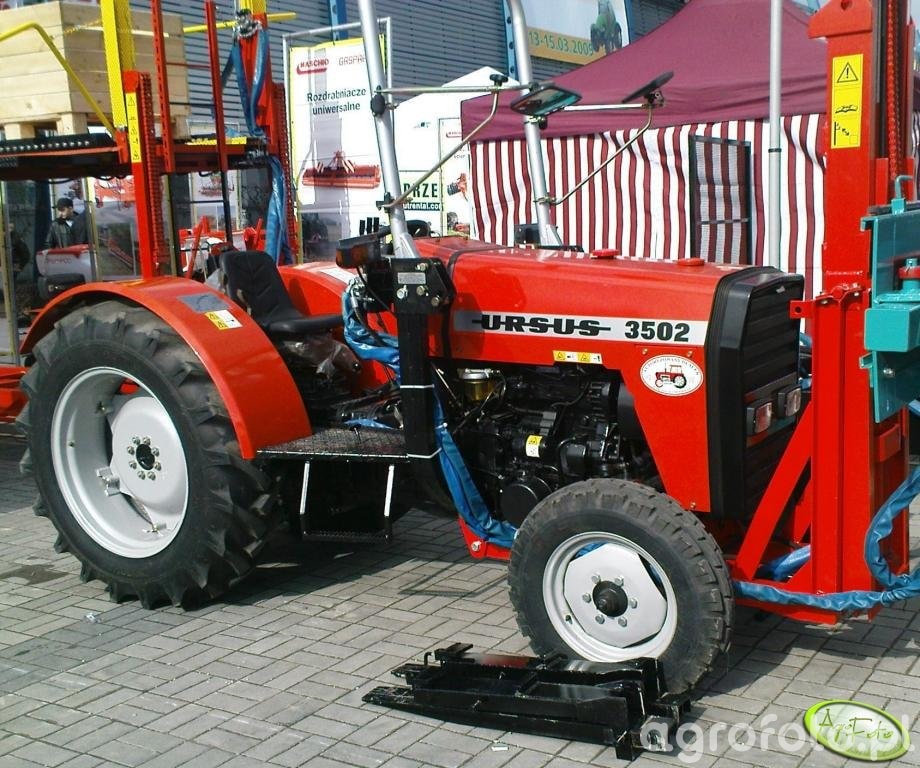

Ursus 3502

Last Updated: June 2024

Overview

The Ursus 3502 is an orchard/vineyard tractor characterized by its 4x2 chassis design and equipped with Ursus's 3250 diesel engine, making it well-suited for specialized agricultural tasks. Featuring a 3-cylinder, liquid-cooled engine with a displacement of 152.7 cubic inches, it outputs 46.4 horsepower at a rated RPM of 2250. This model boasts a mechanical transmission with sliding gears, offering 8 forward and 2 reverse speeds, facilitating a variety of working speeds for different tasks. Designed for operational efficiency in orchard environments, its power steering and direct injection fuel system enhance performance. The tractor has a modest footprint with an overall length of 134.4 inches and a width of 50 inches, which allows for easy maneuverability between rows of crops, and has an operating weight of 3990 pounds. The Ursus 3502 combines robust construction with functional design, ensuring reliable performance in the specialized settings for which it is intended.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 46.4

Transmission: Mechanical with sliding gears

Drive Type: 2WD

Operating Weight: 3990

Fuel Type: Diesel

Ursus 3502 vs. Similar Tractors

Power Output
Below Average
Greater than 18% of similar tractors.
Operating Weight
Below Average
Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ursus
Model
3250
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
152.7
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
46.4

Transmission

Type
Mechanical with sliding gears
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
134.4
Width (in)
50
Height (in)
-
Operating Weight (lb)
3990

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
10.8
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
