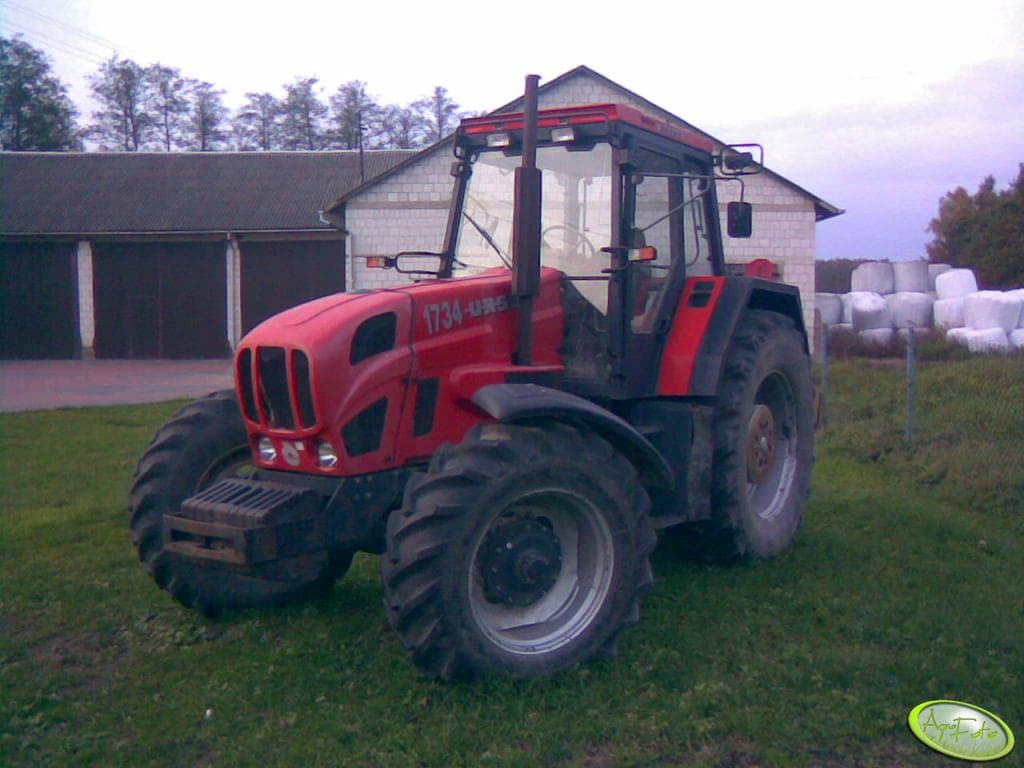

Ursus 1734

Last Updated: June 2024

Overview

The Ursus 1734 is a powerful tractor equipped with a 4x4 MFWD 4WD chassis, providing superior traction in a variety of farming conditions. This model is steered with a power steering system, making maneuvering easier despite its significant horsepower. The engine, a turbocharged diesel made by Zetor, features a six-cylinder configuration and a displacement of 445.4 cubic inches, with a notable horsepower of 167.6. The Ursus 1734 operates with a 16-speed two-speed power shift transmission that includes 16 forward and 8 reverse gears, suited to handle different agricultural tasks effectively. With hydraulic dry disc clutch and electric starting system, operation is facilitated. The tractor rides on standard agricultural tires with sizes Front: 14.9R28 and Rear: 20.8R38. The dimensions of the Ursus 1734 make it a substantial presence in the field, with a length of 177.2 inches, width of 95.9 inches, and height to the exhaust of 119.7 inches.
Show more...

Key Specifications

Power Output: 167.6

Transmission: Two-speed power shift

Drive Type: 4WD

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Zetor
Model
Z 8604.000
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
445.4
Bore (in)
4.33
Stroke (in)
5.04
Rated RPM
220
Power Output (hp)
167.6

Transmission

Type
Two-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
177.2
Width (in)
95.9
Height (in)
119.7
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
III
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
