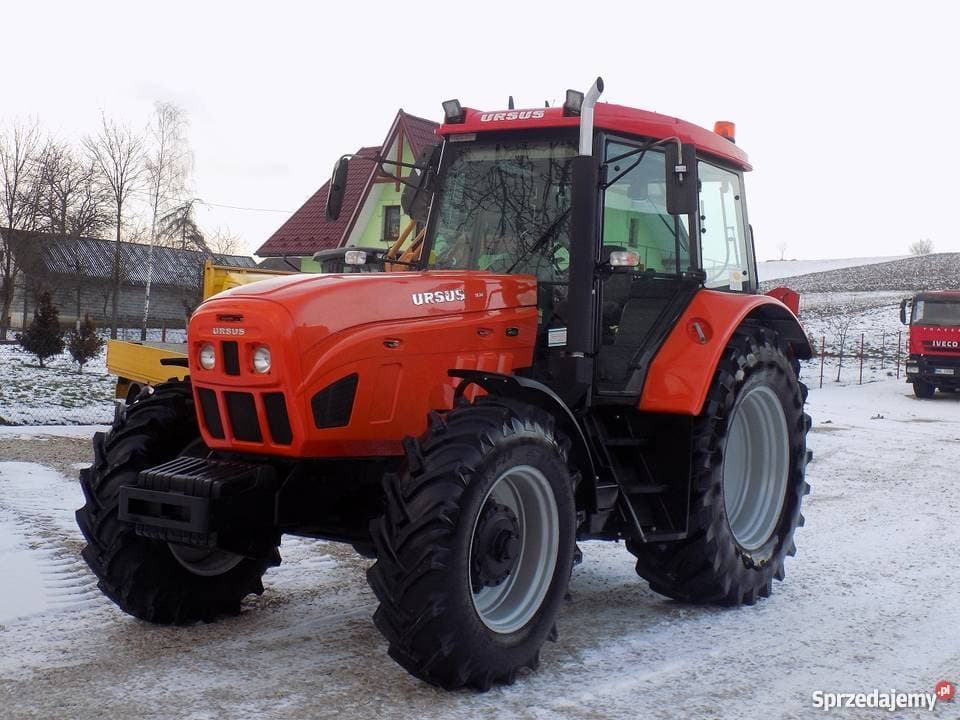

Ursus 1674 Forte

Last Updated: June 2024

Overview

The Ursus 1674 Forte is a robust tractor designed to satisfy the heavy-duty requirements of modern agriculture. It comes equipped with a powerful Perkins 1106D-E66TA 6-cylinder, liquid-cooled, turbocharged aftercooled diesel engine that delivers 156.2 hp. With a substantial operating weight of 14374 lbs, this tractor can support a variety of attachments and implements. Its power is efficiently transferred through a 16-speed transmission consisting of 16 forward and 8 reverse gears, enabling easy operation across diverse working conditions. The 4x4 MFWD 4WD chassis ensures traction and stability on different terrains while the power steering aids maneuverability. The tractor stands at a length of 181.1 inches and a width of 90.6 inches, providing a commanding presence and considerable work envelope. With large agricultural standard tires at the front (14.9R28) and rear (20.8R38), the Ursus 1674 Forte is well-suited for a variety of tasks in the field.
Show more...

Key Specifications

Power Output: 156.2

Drive Type: 4WD

Operating Weight: 14374

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
1106D-E66TA
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
402
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
-
Power Output (hp)
156.2

Transmission

Type
-
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
181.1
Width (in)
90.6
Height (in)
124
Operating Weight (lb)
14374

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag): Front: 14.9R28. Rear: 20.8R38
Manufacture - End Year
-
Hitch Type
Category 3
Hitch Category
III
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
