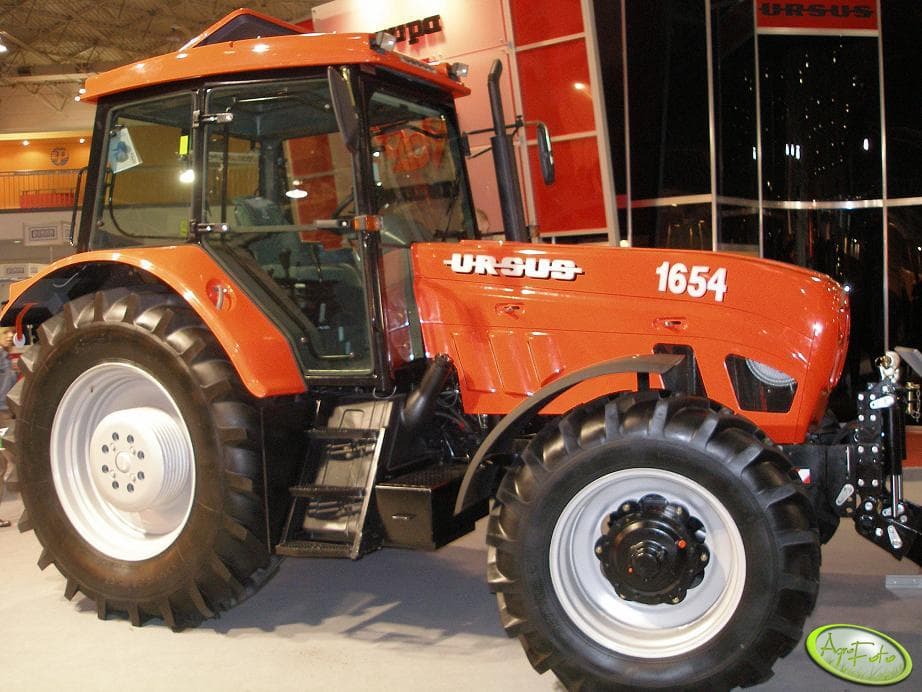

Ursus 1654

Last Updated: June 2024

Overview

The Ursus 1654 is a robust and powerful farm tractor geared towards heavy-duty tasks, thanks to its impressive 158.2 horsepowers and a reliable 445.4 cubic-inch, six-cylinder, turbocharged, liquid-cooled diesel engine. It is equipped with a two-speed power shift transmission with 16 forward gears and 8 reverse gears, ensuring versatility across a wide variety of tasks and terrain types. Its four-wheel drive chassis and power steering provide good maneuverability and traction. Additionally, the tractor has a ballasted operating weight of 13051 pounds, a length of 177 inches, and a cab height of 10.1 feet. The tractor is designed to balance power with precision, making tasks from plowing to towing more efficient. However, some details regarding the size and type of tires, as well as hydraulic system specifications, are not provided.
Show more...

Key Specifications

Power Output: 158.2

Transmission: Two-speed power shift

Drive Type: 4WD

Operating Weight: 13051

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Zetor
Model
Z 8604.035
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
445.4
Bore (in)
4.33
Stroke (in)
5.04
Rated RPM
2200
Power Output (hp)
158.2

Transmission

Type
Two-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
177
Width (in)
-
Height (in)
121.2 (10.1 ft converted)
Operating Weight (lb)
13051

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (assumed from CEG_Height - Top of Cab specification)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
