Ursus 1204

Last Updated: June 2024

Overview

The Ursus 1204 is a row-crop tractor recognized for its robust 4x4 4WD chassis. Under the hood, it boasts a powerful Zetor diesel engine with a displacement of 416.4 cubic inches, pushing out 146 horsepower at 2200 rated RPM. The engine generates significant torque up to 390.9 lb-ft, which, combined with its 16 forward and 8 reverse speed transmission, offers the versatility needed for a variety of farming tasks. The tractor's wheelbase stands at 106.5 inches, providing stable navigation through uneven terrain. With a sizeable operating weight of 10,364 lbs and equipped with substantial agricultural tires—14.9 inches wide at the front and 18.4 inches at the rear—the Ursus 1204 is built for demanding fieldwork. The tractor measures 172 inches in length and 99 inches in height, encapsulating a sturdy framework suited to its row-crop designation.

Key Specifications

Category: Row Crop

Power Output: 146

Transmission: Manual

Drive Type: 4WD

Operating Weight: 10364

Fuel Type: Diesel

Image Gallery

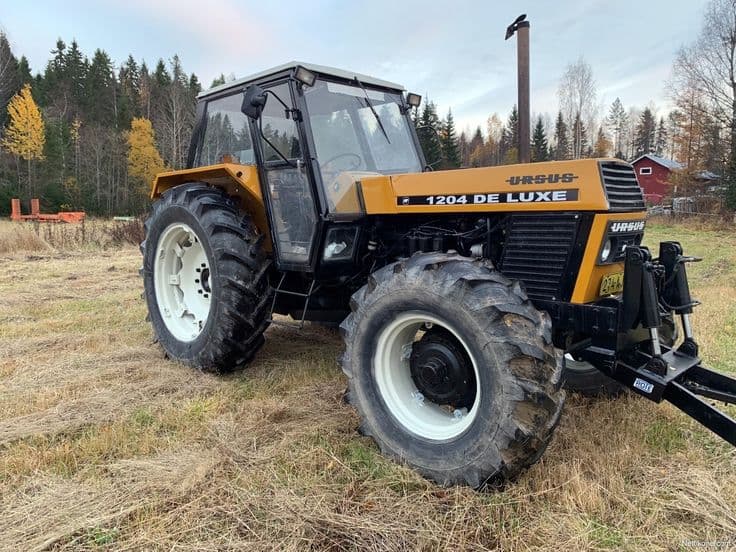

Ursus 1204 Tractor

Ursus 1204 vs. Similar Tractors

Power Output

Average

Greater than 51% of similar tractors.

Operating Weight

Average

Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer: Zetor
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 6
Displacement (ci): 416.4
Bore (in): 4.33
Stroke (in): 4.72
Rated RPM: 2200
Power Output (hp): 146

Transmission

Type: Manual
Forward Gears: 16
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 172
Width (in): -
Height (in): 99
Operating Weight (lb): 10364

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 4WD
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 24
Front Tire Width (in): 14.9
Rear Tire Diameter (in): 34
Rear Tire Width (in): 18.4
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
