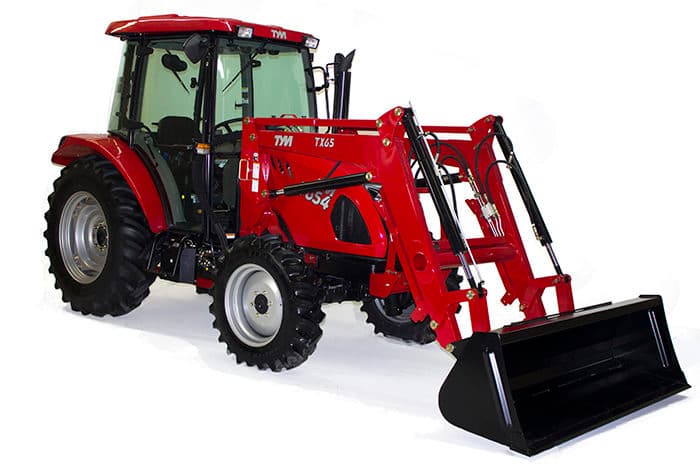

TYM T680

Last Updated: September 2024

Overview

The TYM T680 is a powerful utility tractor built for tough farm work. It has a strong John Deere diesel engine with 68 horsepower, which is above average for tractors in its class. The engine has three cylinders and uses a turbocharger to boost its power. This tractor is designed to handle a variety of tasks with its 4-wheel drive system and hydrostatic power steering.

The T680 offers plenty of gears for different jobs, with 16 forward and 16 reverse speeds. It's a big tractor, measuring 158.7 inches long and 102.4 inches tall with the roll-over protection system. Despite its size, it's easy to control. The tractor weighs 6,658 pounds, which is on the heavier side for similar models. This weight helps it grip the ground well when pulling heavy loads. The T680 comes with large agricultural tires, with 11.2-24 sizes in front and 16.9-30 in the rear, making it ready for fieldwork right away.
Show more...

Key Specifications

Category: Utility

Power Output: 68 hp (50.7 kW)

Drive Type: 4WD

Operating Weight: 6658 lb (3020 kg)

Fuel Type: Diesel

TYM T680 vs. Similar Tractors

Power Output

The Power Output for the TYM T680 is Average. It is greater than 66% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 0.2K+ tractors in our database)

Operating Weight

The Operating Weight for the TYM T680 is Above Average. It is greater than 71% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 0.2K+ tractors in our database)

Engine Displacement

The Engine Displacement for the TYM T680 is Average. It is greater than 49% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the TYM T680 is Average. It is greater than 63% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
John Deere
Model
3029D
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement
179 ci (2.9 L)
Bore
4.19 in (106.4 mm)
Stroke
4.33 in (110.0 mm)
Rated RPM
2500
Power Output
68 hp (50.7 kW)

Transmission

Forward Gears
16
Reverse Gears
16
Total Gears
32

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
