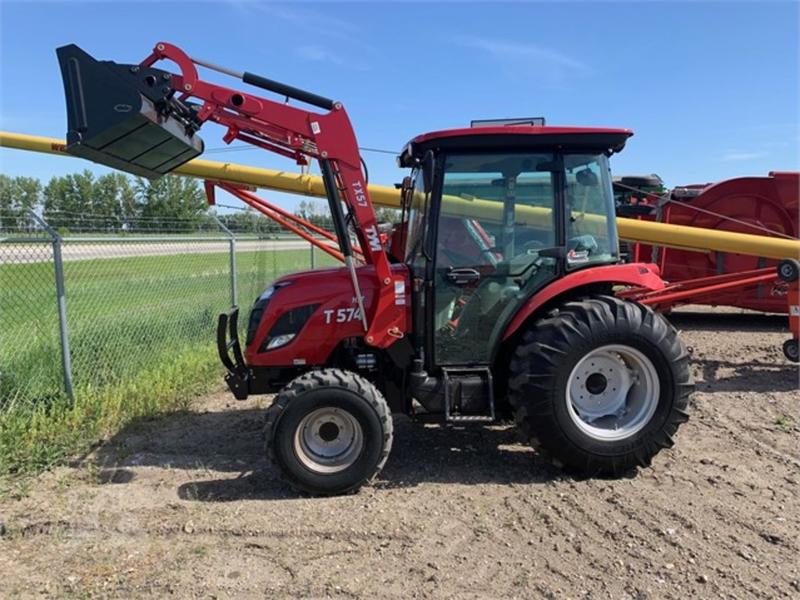

TYM T574

Last Updated: June 2024

Overview

The TYM T574 is a versatile tractor that comes equipped with a Kukje A2300T3 turbocharged diesel engine, capable of delivering 55 horsepower and 108 lb-ft of torque at 1550 RPM. The tractor operates at 2600 rated RPM, with two available transmission types: a synchronized shuttle with 8 forward and 8 reverse gears, and a hydrostatic transmission with infinite forward and reverse gears over a 3-range selection. Designed to handle varying tasks with ease, the T574 can be fitted with either agricultural or industrial tires depending on the needed application. The tractor's size is reasonable, with a length of 133.8 inches, the width of 63.8 inches, and height options of 102.1 inches with ROPS or 99.6 inches with a cab. It further offers flexibility with an open center hydraulic system and can accomplish heavy lifting tasks using its rear PTO at a speed of 540 rpm. The tractor maintains operator comfort with options for an open station with ROPS or an enclosed cab and ensures easy maintenance with its electric starter system.
Show more...

Key Specifications

Power Output: 55

Transmission: Synchronized shuttle and hydrostatic (two types listed)

Operating Weight: 4034 (ROPS), 4299 (cab)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Kukje
Model
A2300T3
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
139.5
Bore (in)
3.465
Stroke (in)
3.701
Rated RPM
2600
Power Output (hp)
55

Transmission

Type
Synchronized shuttle and hydrostatic (two types listed)
Forward Gears
8 (shuttle type) / Infinite (hydrostatic)
Reverse Gears
8 (shuttle type) / Infinite (hydrostatic)
Total Gears
-

Dimensions

Length (in)
133.8
Width (in)
63.8
Height (in)
102.1 (ROPS), 99.6 (cab)
Operating Weight (lb)
4034 (ROPS), 4299 (cab)

Power Take-Off (PTO)

PTO Type
Rear
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Power (implied by steering flow)
Coolant Capacity (qts)
6.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 9.5-16. Rear: 13.6-26 / Industrial: Front: 12-16.5, Rear: 17.5-24
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open station with ROPS or Cab (two types listed)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
