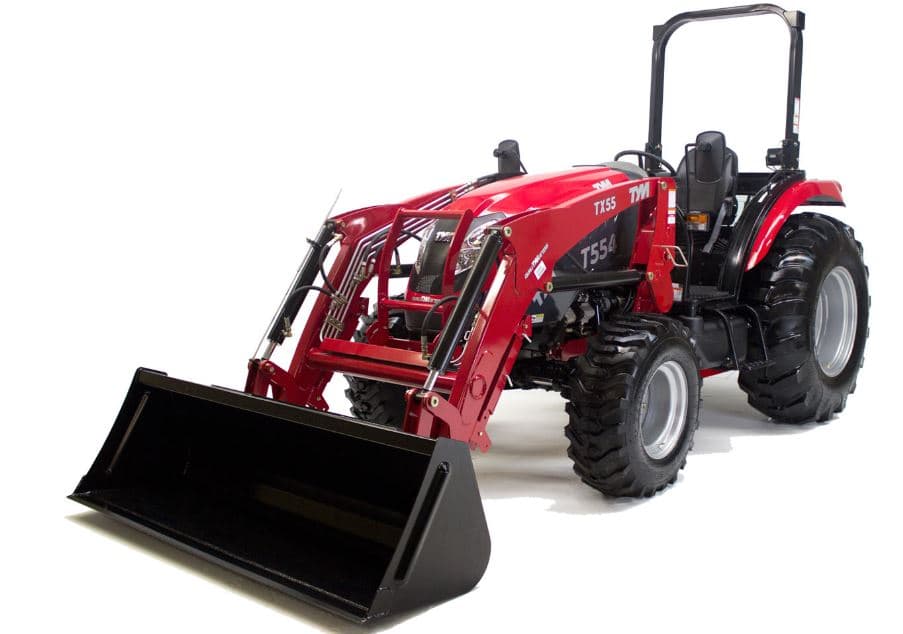

TYM T554

Last Updated: June 2024

Overview

The TYM T554 is a compact utility tractor that provides a robust and versatile tool for farmers and landowners. A key characteristic of the T554 is its 4x4 MFWD 4WD chassis which offers enhanced mobility and traction across various terrains. Equipped with a powerful 55.1 horsepower Yanmar turbocharged diesel engine, the tractor ensures efficient operation with a grand displacement of 127.6 cubic inches. Notably, the engine achieves an emission standard of Tier IV. With a hydrostatic power steering system, this tractor affords the operator with smoother and more responsive steering control. The synchronized shuttle transmission with 16 forward and reverse gears makes it convenient for handling a variety of tasks without the need to stop for gear changes. The static data suggest a tractor well-equipped for heavy-duty tasks while maintaining maneuverability with a wheelbase of 76.2 inches and clearance of 13.8 inches.
Show more...

Key Specifications

Category: Utility

Power Output: 55.1

Transmission: 16-speed synchronized shuttle

Drive Type: 4WD

Operating Weight: 4188

Fuel Type: diesel

TYM T554 vs. Similar Tractors

Power Output
Average
Greater than 54% of similar tractors.
Operating Weight
Average
Greater than 38% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
4TNV86T-CR
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
4
Displacement (ci)
127.6
Bore (in)
3.4
Stroke (in)
3.5
Rated RPM
2800
Power Output (hp)
55.1

Transmission

Type
16-speed synchronized shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
141.3
Width (in)
63.8
Height (in)
Height (cab) 108.9
Operating Weight (lb)
4188

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag tires specified, presumably radial; industrial tire sizes provided
Manufacture - End Year
-
Hitch Type
Rear Type I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center dual gear pump
