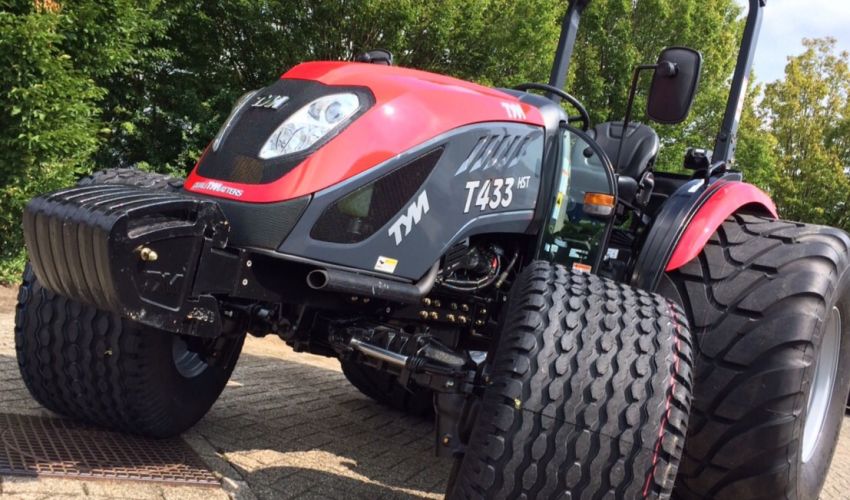

TYM T433

Last Updated: June 2024

Overview

The TYM T433 is a compact utility tractor designed to offer versatility and power in a range of agricultural and utility tasks. It comes equipped with a four-wheel-drive (4WD) chassis for optimal traction and maneuverability. This model features a Caterpillar C2.2 four-cylinder diesel engine with a liquid cooling system to maintain performance even under heavy loads. It produces 42.7 horsepower and operates at a rated RPM of 2600. Power steering ensures easy operation, and the 16-speed sync shuttle transmission provides a comfortable and efficient mechanism for changing gears. The tractor can be selected with either Rollover Protective Structure (ROPS) or cab configurations, affecting its height and weight measurements. The TYM T433 has a wheelbase of 76.2 inches and offers multiple tire configurations for agricultural or industrial applications, suiting different terrain and usage requirements.
Show more...

Key Specifications

Category: Utility

Power Output: 42.7

Transmission: Sync Shuttle

Drive Type: 4WD

Operating Weight: 4140 (ROPS), 4559 (cab)

Fuel Type: Diesel

TYM T433 vs. Similar Tractors

Power Output
Average
Greater than 40% of similar tractors.
Operating Weight
Average
Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer
Caterpillar (Perkins 404D-22 depending on market)
Model
C2.2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect injection
Cylinders
4
Displacement (ci)
135.2
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
42.7

Transmission

Type
Sync Shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
141.3
Width (in)
62.6
Height (in)
101.9 (ROPS), 99.6 (cab)
Operating Weight (lb)
4140 (ROPS), 4559 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category 1
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Dual gear pump
