TYM T350

Last Updated: June 2024

Overview

The TYM T350 is a compact utility tractor that offers a robust 4-wheel drive system and is powered by a Mitsubishi S4L2 35hp diesel engine. With 12 forward gears and 3 reverse gears provided by its mechanical gear transmission, the T350 delivers capable handling and traction for a variety of tasks. The tractor supports a hydrostatic power steering system that makes maneuvering easier and more efficient. Equipped with a liquid-cooled engine, the T350 maintains optimal performance during operation. The tractor maintains an operating weight of 3695 lbs and offers ample ground clearance. It features a roll-over protection structure (ROPS), ensuring safety during use. The T350 is well-suited for a range of agricultural tasks, providing reliable performance and durability for farm owners and operators.

Key Specifications

Category: Utility

Power Output: 35

Transmission: Mechanical gear

Drive Type: MFWD/4WD

Operating Weight: 3695

Fuel Type: Diesel

Image Gallery

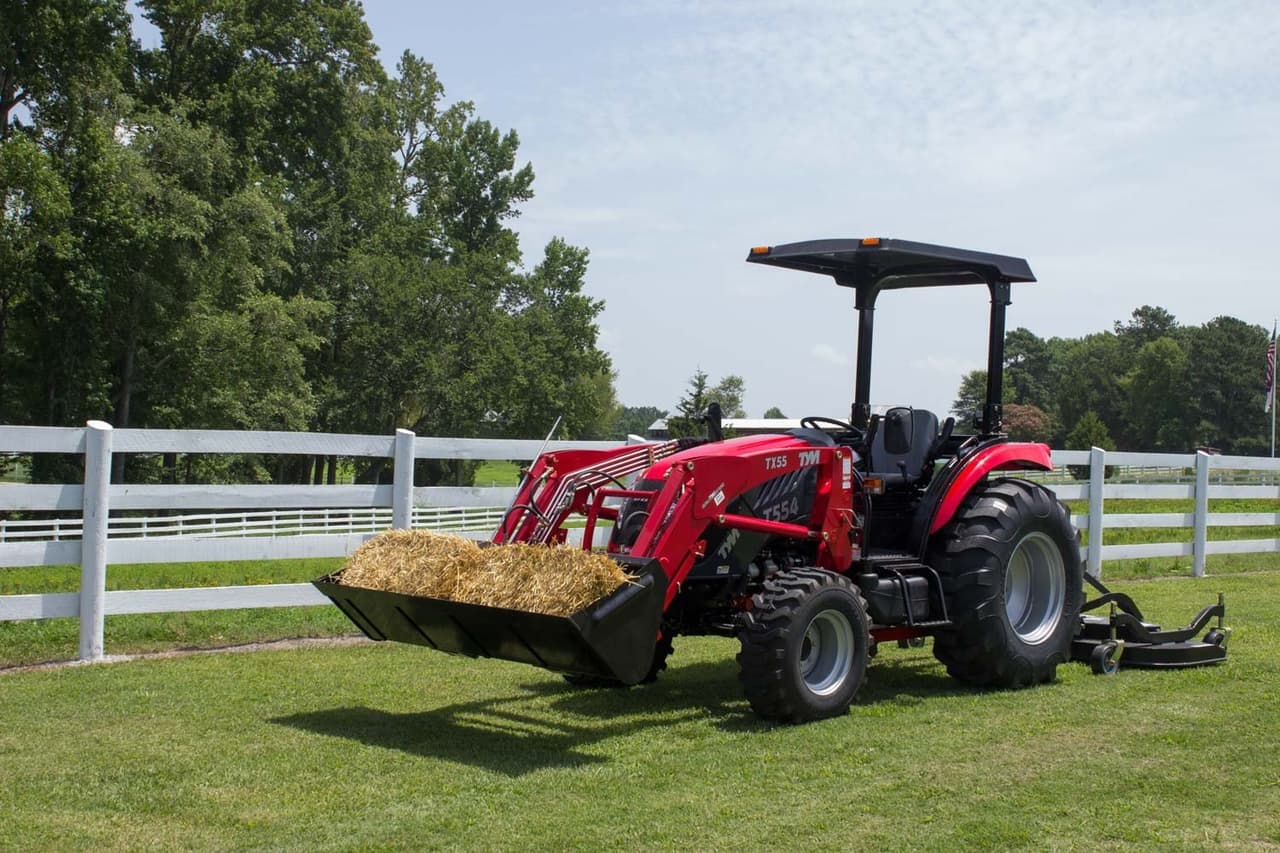

TYM T350 Tractor

TYM T350 vs. Similar Tractors

Power Output

Average

Greater than 32% of similar tractors.

Operating Weight

Average

Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: S4L2
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Indirect injection
Cylinders: 4
Displacement (ci): 107.3
Bore (in): 3.23
Stroke (in): -
Rated RPM: 2800
Power Output (hp): 35

Transmission

Type: Mechanical gear
Forward Gears: 12
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 132
Width (in): 60
Height (in): 87
Operating Weight (lb): 3695

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD/4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 7.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (assumed as "Rear Type: I" often corresponds with this type)
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
