TYM T25

Last Updated: June 2024

Overview

The TYM T25 is a compact utility tractor powered by a reliable 24.7 horsepower Yanmar 3TNV80F diesel engine. It features a robust hydrostatic transmission with infinite forward and reverse gears, allowing for easy maneuvering and speed control. With its liquid cooling system and electric starter, the tractor ensures efficient operation and easy ignition. The tractor's oil and coolant capacities are sized at 2.9 and 3.8 quarts, respectively. The T25 comes with options for lawn/turf and industrial tire setups, catering to different working conditions. Its wheelbase measures 61 inches, providing stability, while its length, width, and height are 107.8, 52.8, and 89.8 inches respectively. The tractor weighs between 1881 and 2399 pounds, depending on whether it is equipped with a ROPS or cab. The tractor is fitted with a Category I hitch; however, specific details about the hitch's lifting capacity and position are omitted.

Key Specifications

Power Output: 24.7

Transmission: hydrostatic

Operating Weight: 1881 (with ROPS) - 2399 (with cab)

Fuel Type: diesel

Image Gallery

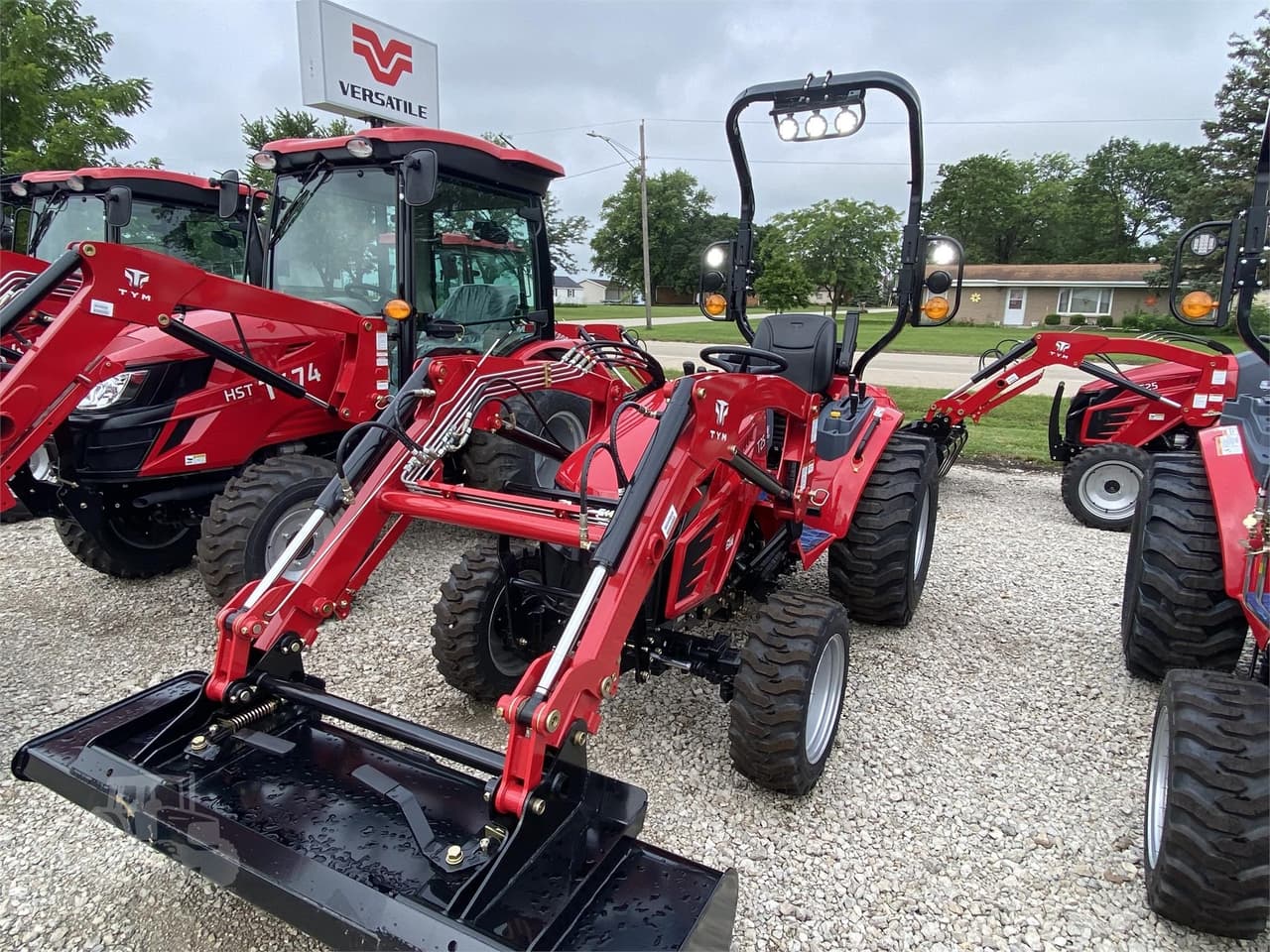

TYM T25 Tractor

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNV80F
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: indirect injection
Cylinders: 3
Displacement (ci): 77.3
Bore (in): 3.15
Stroke (in): 3.31
Rated RPM: 3000
Power Output (hp): 24.7

Transmission

Type: hydrostatic
Forward Gears: infinite (assumed based on hydrostatic transmission with range)
Reverse Gears: infinite (assumed based on hydrostatic transmission with range)
Total Gears: infinite (assumed due to the nature of hydrostatic transmission)

Dimensions

Length (in): 107.8
Width (in): 52.8
Height (in): 89.8 (with ROPS)
Operating Weight (lb): 1881 (with ROPS) - 2399 (with cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 3.8
Front Tire Diameter (in): Unknown (sizes given but not specifically diameter)
Front Tire Width (in): Unknown (sizes given but not specifically width)
Rear Tire Diameter (in): Unknown (sizes given but not specifically diameter)
Rear Tire Width (in): Unknown (sizes given but not specifically width)
Front/Rear Rim Diameter (in): -
Tire Type: lawn/turf and industrial (both provided)
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS or Cab (both weights provided)
Starter Type: electric
Brake Type: -
Hydraulic System Type: open center
