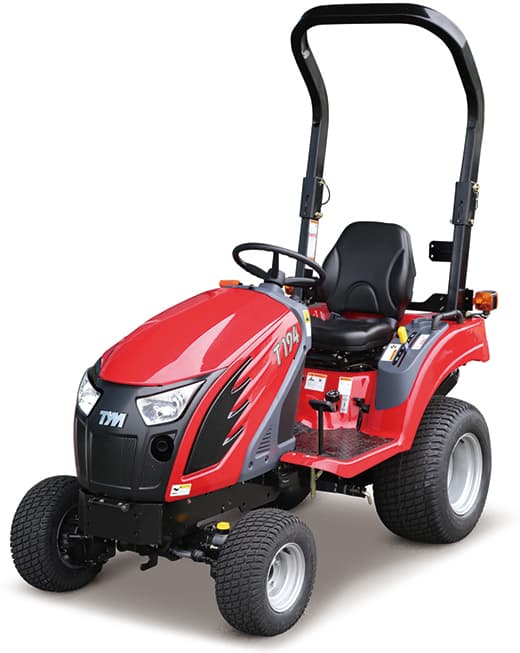

TYM T194

Last Updated: June 2024

Overview

The TYM T194 is a sub-compact utility tractor equipped with a Yanmar 3TNV74F diesel engine. It features a hydrostatic transmission offering infinite forward and reverse gears across two ranges and delivers a power output of 19 horsepower. The engine operates at a rated RPM of 3000, with a liquid cooling system and a displacement of 60.6 cubic inches. Indirect injection serves as the engine's induction type. The tractor has a small footprint, with a length of 94.2 inches and a width of 44.5 inches. It offers flexibility in tire configurations, suitable for various lawn and agricultural tasks. This model has a wheelbase of 53.1 inches and a robust power steering system, providing ease of maneuverability and control. The tractor's maneuverability is suitable for small-scale farming, landscaping, and other utility work where space is limited.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 19

Transmission: Hydrostatic

Operating Weight: 1433

Fuel Type: Diesel

TYM T194 vs. Similar Tractors

Power Output
Poor
Greater than 8% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV74F
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect injection
Cylinders
3
Displacement (ci)
60.6
Bore (in)
2.91
Stroke (in)
3.03
Rated RPM
3000
Power Output (hp)
19

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
94.2
Width (in)
44.5
Height (in)
86.6
Operating Weight (lb)
1433

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
3.7
Front Tire Diameter (in)
-
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
12
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 16x7.50-9, Rear: 24x12.00-12; Turf: Front: 16x7.50-8, Rear: 16x12.00-12
Manufacture - End Year
-
Hitch Type
Category 1
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
