TYM T1104

Last Updated: September 2024

Overview

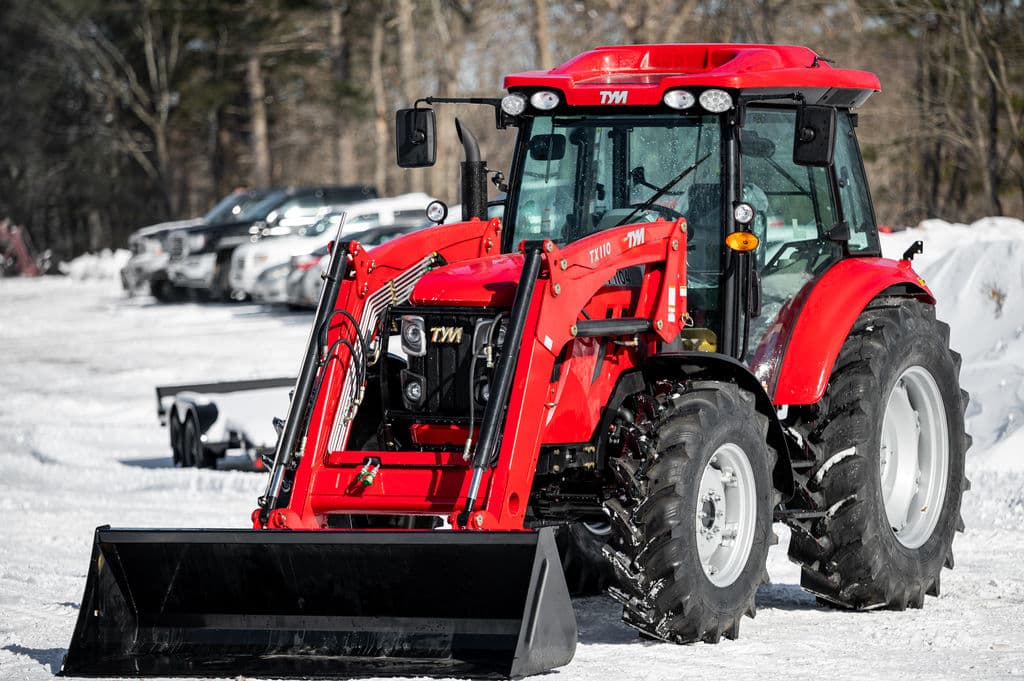

The TYM T1104 is a powerful utility tractor that's great for big farm jobs. It has a strong Doosan diesel engine with 105 horsepower, which is very high compared to other tractors. This engine has four cylinders and uses a turbocharger to make it even stronger. The tractor is cooled by liquid to keep it running smoothly.

One of the best things about the T1104 is its transmission. It has 32 gears going forward and 32 going backward, which means you can pick just the right speed for any task. The tractor is big and sturdy, weighing 8,666 pounds, which is above average for its class. It has a cab for the driver, keeping them comfortable and safe while working. The tractor also has power steering, making it easier to control despite its size.

This TYM tractor is built to handle tough jobs. It has a strong hitch at the back for pulling heavy equipment. The hydraulic system is open center type, which is good for using different tools. With its size (165.4 inches long, 86 inches wide, and 107 inches tall) and features, the T1104 is a great choice for farmers who need a reliable and powerful machine for their daily work.
Show more...

Key Specifications

Category: Utility

Power Output: 105 hp (78.3 kW)

Transmission: Power Shuttle

Operating Weight: 8666 lb (3931 kg)

Fuel Type: Diesel

TYM T1104 vs. Similar Tractors

Power Output

The Power Output for the TYM T1104 is Above Average. It is greater than 85% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the TYM T1104 is Above Average. It is greater than 81% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the TYM T1104 is Average. It is greater than 62% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the TYM T1104 is Average. It is greater than 42% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Doosan
Model
DK03-LEA04
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
208 ci (3.4 L)
Rated RPM
2300
Power Output
105 hp (78.3 kW)

Transmission

Type
Power Shuttle
Forward Gears
32
Reverse Gears
32
