TYM T1003

Last Updated: June 2024

Overview

The TYM T1003 is a utility tractor designed for a variety of tasks. With a robust 4x4 MFWD 4WD chassis, it's capable of performing in different terrains. The tractor is powered by a turbocharged Caterpillar 3054C-DIT diesel engine—marketed as Perkins 1104D-44TA in some areas—which provides 99.5 horsepower at a rated RPM of 2200. Its cooling system requires 11.6 quarts of coolant. The hydrostatic power steering and 32-speed power shuttle transmission facilitate ease of operation. The length of the tractor is 162 inches, width is 87.9 inches, and height (cab) is 107 inches. It has varying operating weights between 8069 and 8124 pounds. The front and rear tire sizes are 13.6-24 and 16.9-34 respectively. Although the manufacture years are not specified, the tractor's combination of power and design makes it suited for a range of agricultural tasks.

Key Specifications

Category: Utility

Power Output: 99.5

Transmission: power shuttle

Drive Type: 4WD

Operating Weight: 8069 to 8124

Fuel Type: diesel

Image Gallery

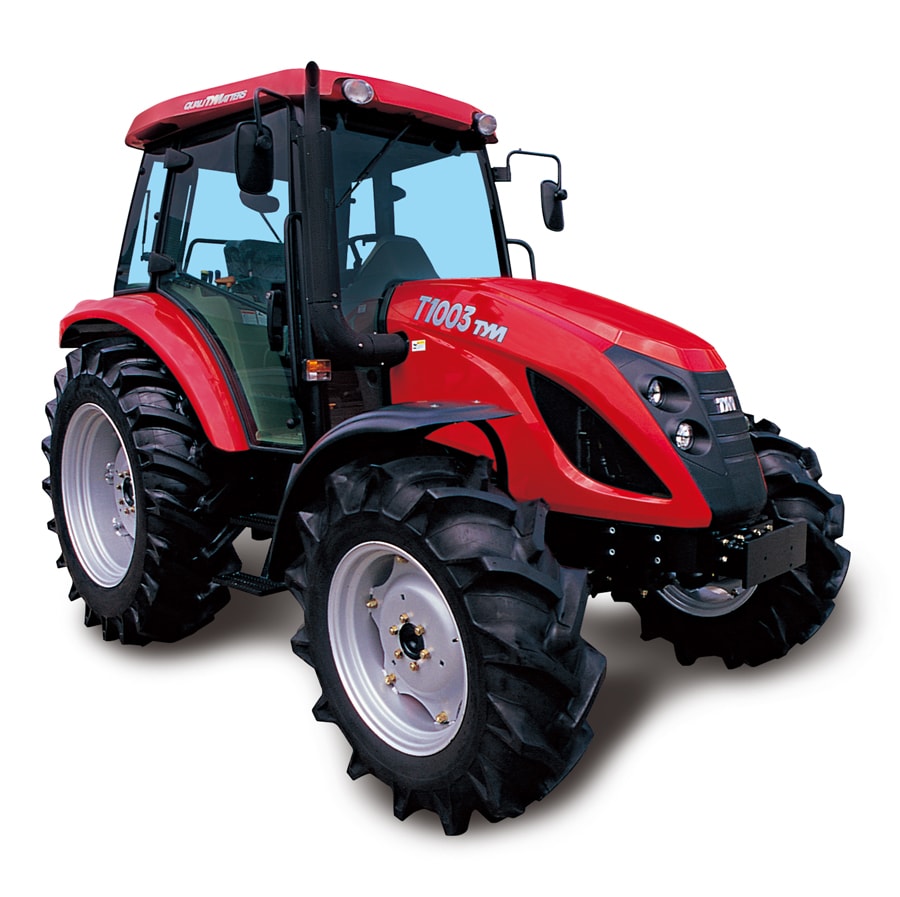

TYM T1003 Tractor

TYM T1003 vs. Similar Tractors

Power Output

Above Average

Greater than 81% of similar tractors.

Operating Weight

Excellent

Greater than 92% of similar tractors.

Technical Specifications

Engine

Manufacturer: Caterpillar (Perkins)
Model: 3054C-DIT (1104D-44TA)
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: turbocharged
Cylinders: 4
Displacement (ci): 268.4
Bore (in): -
Stroke (in): -
Rated RPM: 2200
Power Output (hp): 99.5

Transmission

Type: power shuttle
Forward Gears: 32
Reverse Gears: 32
Total Gears: -

Dimensions

Length (in): 162
Width (in): 87.9
Height (in): 107
Operating Weight (lb): 8069 to 8124

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: hydrostatic power
Coolant Capacity (qts): 11.6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category 3
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: -
Brake Type: -
Hydraulic System Type: dual gear pump
