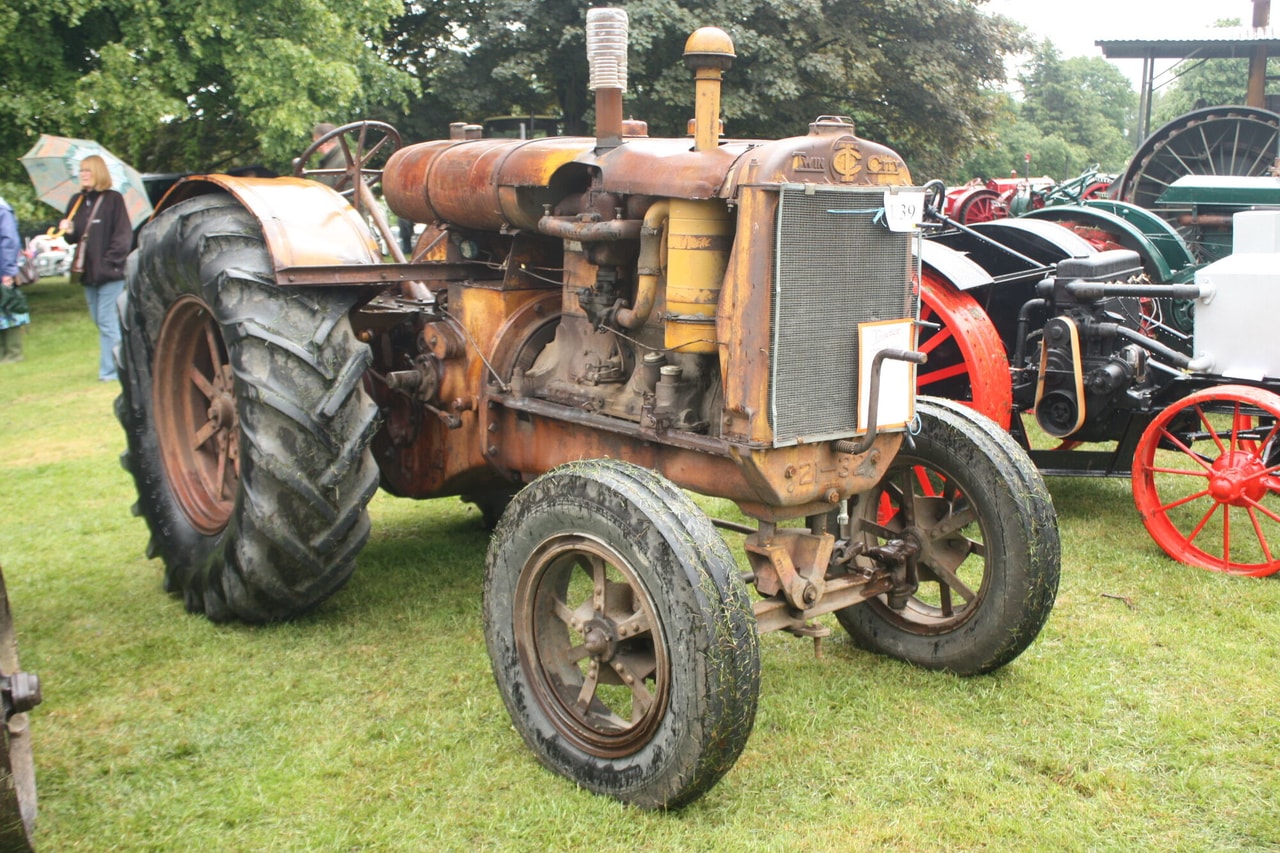

Twin City 21-32

Last Updated: June 2024

Overview

The Twin City 21-32 is a vintage tractor, which, based on its overall design and available specifications, was most likely used for general farming tasks during its time of production. It features a 4-cylinder, 381.7 cubic inches, liquid-cooled inline engine, running on kerosene with a bore and stroke of 4.50x6.00 inches and an engine rated RPM of 1075. This tractor's transmission is of the gear type, having 3 forward gears and 1 reverse gear. The chassis and drive type are not specified, but given the tractor's era, it's reasonable to suspect it was either 2WD or a simple tractive drive. No specific data is available regarding the engine's valve configuration, power output, or the tractor's width. With steel tires sized 34x5.75 at the front and 50x12 at the rear, and an operating weight of 5,880 pounds, the tractor's dimensions and weight indicate it was designed for substantial work. Details such as the hitch type and category, PTO type and speed, and any additional features are not provided and therefore cannot be definitively stated without further information.
Show more...

Key Specifications

Transmission: Gear

Operating Weight: 5880

Fuel Type: Kerosene

Technical Specifications

Engine

Manufacturer
Twin City
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Kerosene
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
381.7
Bore (in)
4.5
Stroke (in)
6
Rated RPM
1075
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
3
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
137
Width (in)
-
Height (in)
66
Operating Weight (lb)
5880

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
36
Front Tire Diameter (in)
-
Front Tire Width (in)
5.75
Rear Tire Diameter (in)
-
Rear Tire Width (in)
12
Front/Rear Rim Diameter (in)
-
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
